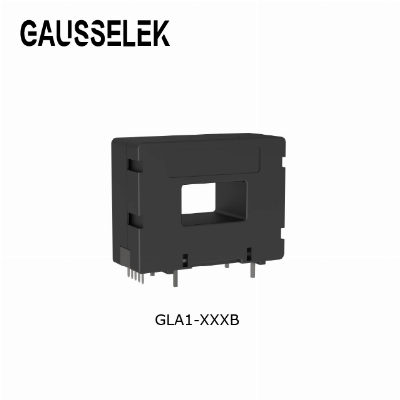

Gla1-200b Closed Loop Hall Current Transducer (compatible with LEM Lzsr)

GLA1-200B Series Current TransducerIPN = 100 ... 200 ARef:GLA1-100B, GLA1-150B, GLA1-200BIntroduction  The GLA1-xxxB series is based on Hall technology and closed loop design. It is suitable for DC, AC, pulsed and any kind of irregular current measurement under the isolated conditions.Dimensions(inmm)GLA1-200BParameterSymbolUnitSpecificationConditionsMinTypicalMaxPrimary nominal RMS currentIPNA 200  Primary current, measuring rangeIPMA 450  Supply voltageUCV4.75 5.25 Current consumptionICmAIP      Ip(mA)8 + ————     NS        Ip(mA)10 + ————        NSNS=1500Reference voltage @IP=0AVrefV2.4852.52.515 Output voltageVoutV0.25 4.75with UC=+5 VElectrical off set voltageVOEmV-2.5 2.5 Temperature coefficient of VrefTC Vrefppm/ºC-100 100 Temperature coefficient of Vout @ IP=0ATC Voutppm/ºC-3 3 Nominal sensitivitySNmV/A 3.125 625 mV/IPNSensitivity errorεS% of IPN-0.8 0.8 Temperature coefficient of STCSppm/ºC  75 Linearity errorεL% of IPN-0.15 0.15 Magnetic offset voltage(@10*IPN) referred to primaryVOMmV-1 1 Output RMS noise voltage DC....20MHzVppmV 5  VRMSmV 1 Frequency bandwidth(-3dB)BWkHz200   Accuracy @IPNXTA% of IPN-1 1@TA = 25ºCAccuracy @IPN @ TATA% of IPN-1.2 1.2@TA=85ºC  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
