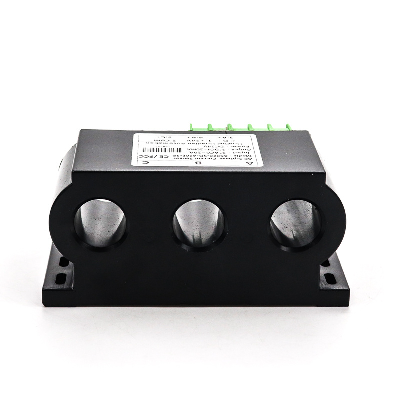

4-20mA Output Current Transmitter 3 Phase Current Sensor Current Transducer

4-20ma output current transmitter 3 phase current sensor current transducerHD-T273I AC current transmitter uses the Hall principle to directly convert high-current AC signals from industrial sites into standard analog signals, and the input and output signals have a linear relationship.Mutual inductance + transmission and transmission, input, output and power are reliably isolated at three terminals.  Technical ParametersInput Input current range0-50AAC/0-100AAC/0-200AAC/0-400AAC,etcFrequency Range40-60HZOutput output signal4-20mA,0-20mA,0-10V,etcOutput load resistanceRL≤500Ω(output current signal)                RL≥10KΩ(output voltage signal)power supplyDC12V/24V/220V,AC220VRated power consumption≤1W(DC24Vpower,4-20mAoutput)Basic accuracy≤0.2% F.S.Temperature drift0.2% F.S./ºC(-30ºC~+85ºC)Response time≤100ms(0-90%)(TYP)Dielectric strength2000V AC/1min(input,output,power)range of working temperature-30ºC~+85ºCElectromagnetic CompatibilityMeet GB/T 18268.1(IEC61326-1)   Product model listHD-T273IXXSignal typeAperture  20mmInput signalA 0-50AAC B 0-100AAC C 0-300AAC D CustomizedOutput signal14~20mA 20~5V 30~10V 5CustomizedPower supplyDDC 24V  default NDC12VProduct selection example:Eg:HD-T273I-X-XXXHD-T273I-20-A1D,20mm aperture, input 0-50AAC,output 4-20mA,24VDC powerProductsCompany informationRelated products/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
