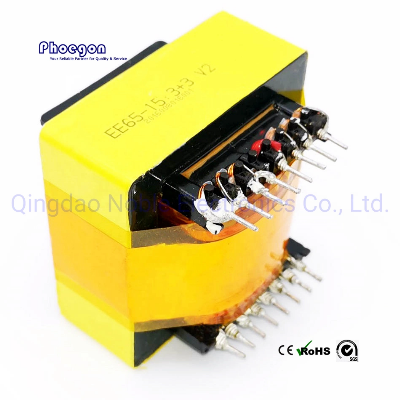

for Household Appliance Hf Electronic Component Ee33 Transformer

EF33 (EE33) Series Ferrite CoreHigh Frequency Switch Transformer  Safety Standard: UL 94V-0EN61558-2-16  Insulation System (in compliance with): UL Class B 130ºCCreepage distance between primary and secondary: 6mm Min.Electrical Parameter:   Inductance (0.1V 1KHz): 990uH+/-10% Terminal (3 --- 5)    Leakage Inductance (0.1V 100KHz at all secondary winding shorted):26uH Max. Dielectric Strength: (cut off current 3mA): Type TestProduction TestTest Voltage (Vrms)Time (Second)Test Voltage (Vrms)Time (Second)Primary to Secondary Winding40006048001Pri., Secondary to Core15006018001Primary to Aux. winding15006018001    DC Resistance (at 20ºC):P1 (3--4): 0.237Ω +/-15%P2 (4--5): 0.425Ω+/-15%P3 (2--1): 0.0526Ω+/-20%  S (6--9): 0.0542Ω+/-20% Insulation Resistance (DC 500V): 100MΩ Min.Environmental Property :    Operating Temperature Range    (including temperature rise of transformer):      -20ºC   to   130ºC   Storage Temperature Range:                     -30ºC   to    80ºCSchematic Diagram:Related productsInverter welder transformer...click for more detailsEncapsulated Transformer...click for more detailsBalun transformer...click for more details    Rod Core Inductor...click for more detailsEMI Chock Inductor...click for more detailstoroidal inductor...click for more detailsFAQ:1. Are you factory?  Yes, we have more than 17 years production experience.2. All goods are tested before shipment?Yes of course, all goods are tested with different testing machines for different electrical parameter.3. Small Order Quantity is available?Yes of course we can. In our history, the smallest order is 5 pcs. For your reference, small quantity means higher prices.4. Protection of goods is ok for rough handling during transformer from China to your warehouse?Yes, we have done sound protection measurements for protection.5. How to be in compliance with UL insulation system?We use all the materials which is in compliance with UL certification.6. VDE certification is available?We can do that once you do need it.7. Small Size Toroidal transformer (inside is about 10mm) is available?Yes, we have reliable ability to hand wind such small size transformer. But the time of shipment is normal./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
