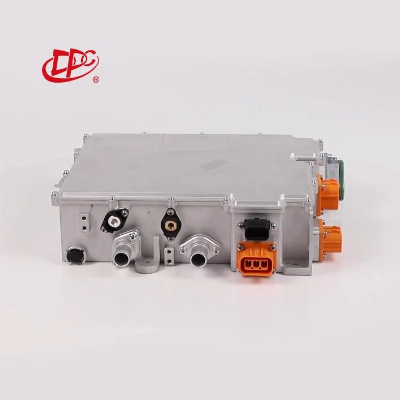

3-in-1 Onboard Integrated Power System (DC/DC+OBC+PDU3.0)

Product DescriptionDPC 3-in-1 Power Control Unit is an integrated onboard power supply system including the on-board charger (OBC), DC/DC, and power distribution unit (PDU). It features high performance, high power density, high reliability, and EMC compatibility.  Features  √ Compatible with 220VAC and 110VAC systems;√ Compatible with 800V high voltage platforms;√ High Efficiency: DCDC full-load efficiency ≥94.5%, OBC full-load efficiency >95.2%;√ Flexible PDU Port Configuration: integrated ports for power batteries, PTC, air conditioning and MCU, and reserved ports for wireless charging and fast charging.                                                                                       Detailed Photos  Product Parameters   DCDCInputHigh Voltage300VDC-900VDCLow Voltage6-16VOutputPowerMain DCDC: Rated 2.5kW, peak 3kW (6min)Auxiliary DCDC (reserved): Rated 2kW, peak 2.5kW (6min), can be used in parallel.EfficiencyFull-load efficiency ≥94.5% (full input voltage range)OBCChargingInput Voltage90-264VACSingle Phase: 220VAC/110VACsystems(Automatic recognition of input voltage level and automatic switching)Output Voltage300VDC-900VDCPower6.6KWEfficiencyFull-load weighted efficiency >95.2%DischargingInput Voltage300VDC-900VDCOutput Voltage220VAC/50HzPower6kVAEfficiencyFull-load efficiency >95%PDUFunction 1MCU(Standard)Function 2Power Battery (Standard)Function 3PTC (Standard)Function 4Air Conditioning (Standard)Function 5Fast Charging (Reserved)FeaturesOperating Temperature-40-85ºCCooling MethodLiquid CoolingCoolant Temperature≤65ºCCoolant Flow Rate5L/min~16L/minDimensions (W×D×H)330×285×93mmWeight≤10kgIP GradeIP67  Company ProfileAbout UsBeijing Dynamic Power Co., Ltd. (SH: 600405), deeply engaged in power electronics technology for almost 3 decades, strategically focuses on the three major business segments of data communication, green travel and renewable energy. It has more than 30 branches home and abroad, with services and products well received in over 30 countries and regions.With solid foundation in power electronics technology and system integration development, DPC has increased and diversified its presence in the sphere of green travel, establishing itself as a provider of intelligent core components related products in the field of new energy vehicles. It has formed core technology advantages in hydrogen fuel cell DC/DC converters, high-speed air compressor controllers, and can provide customers with comprehensive NEV system solutions.DPC is committed to providing customers with more reliable, efficient, and sustainable products and services as part of its aim to build a green world.Factory at a Glance  Certifications Exhibitions  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
