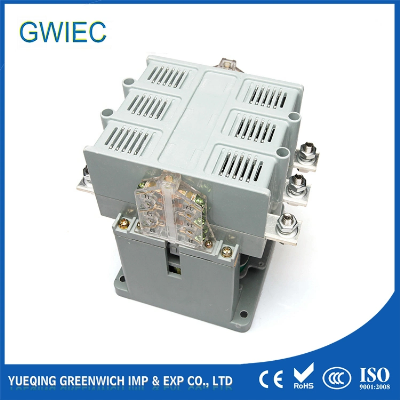

Cj40 Series 63A 100A 250A 400A 3 Phase Magnetic Contactor

1.CJ40 Series AC Contactor is mainly used for electric electric power circuit of AC 50/60Hz,Rated voltage to 660V(Individual grade  to 1140V),Current to 630A for frequently making and breaking circuit and control AC motor.2. it can be formed electromagnetic starter with thermoal relay or electronic protector for protecting circuit.3. The contactor is suitable for the following rated duty:eight-hour duty,interrupt duty,interrupted period duty,short time duty.4.The products comply with IEC60947-4.   Specifications:  CJ40 series AC contactor is mainly used to connect and turn off electric circuit in electrical powerline of AC 50Hz(or 60Hz), rated working voltage upto 660V(or 1140V) and rated working current upto 1000A, and can be combined with thermal overload relay or electronic protection devices as electromagnetic starter, to protect circuit from possible overload.TypeInsulation voltage (V)Conventional thermal current (A)Contrlled squirrel-cageasynchronous motor`s max power pe(Kw) Switching frequency h-1 Electric endurancePower consumption of coil(AC) 220V380V  660V 1140VClosingClosedGK CJ40-6311408018.53055 -12001,200,00048057GK CJ40-80223755 -GK CJ40-100125304575 -GK CJ40-12537557555GK CJ40-1602504575110- 88088GK CJ40-2005590110-GK CJ40-25075132110110GK CJ40-31550090160 300-600600,0001710152GK CJ40-400110220 300-GK CJ40-500150280 300220GK CJ40-630800200335 475-300300,000357811.5GK CJ40-800250450 475-GK CJ40-10001000360628 475600   Product outline and installation dimensions7 order instructions7.1 when ordering contactor, specify the following points:7.1.1 complete name and model of contactor;7.1.2 rated working voltage and frequency or specification code of the coil;7.1.3 combination of auxiliary contact, if not specified, the 63A and above specifications are provided with four normally open and two normally closed;7.1.4 quantity of order.7.2 ordering example: cj40-63 ac contactor coil voltage 380V 50Hz 10 sets./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
