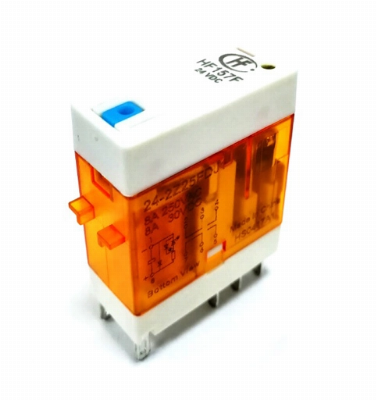

Subminiature Relay Hf157f Power Control Relay

TypeHF157FCoil voltage formDC,ACCoil voltageDC: 12, 100, 110, 48, 36, 60, 24, 5, 6AC: 120, 110, 230, 12, 115, 48, 220, 240, 24, 6, 60Contact arrangement2 From C, 1 From CContact versionSingle contactTerminal typeQCMountingSocketConstructionFlux proofedCoil powerStandardSortSingle side stableContact capacityAgSnO2In2O3Insulation standardFParallel coil componentsDC: With LED, With LED and diode(Power 1 pin to - pole), With LED and diode(Power 1 pin to + pole)AC: With LEDContact enduranceWith button type, Without button typePacking methodPlastic packingRated voltage(V)250VAC,30VDCCoil powerApprox 0.53Dielectric strength (between coil & contacts) (VAC 1min)5000VAC 1minOperate time(ms)≤15Release time(ms)≤10Coil resistance(Ω)Need to fill in respectivelyCreepage Distance(mm)10.1Electrical Distance(mm)5.9Insulation resistance(MΩ)1000Max. switching Current(AC)16:1Z10:2ZMax. switching Current(DC)16:1Z10:2ZMax. switching voltage(VAC)250Max. switching voltage(VDC)30Ambient temperature (max)(ºC)-40Ambient temperature (min)(ºC)70Mechanical endurance min30000000:AC Coli50000000:DC ColiElectrial eddurance min100000Contact gap≥0.35Product DescriptionMiniature intermediate power relayApplicationAutomatic control fieldTypical applicationInstrument,Machine tool equipment,Electrical cabinetWeight(g)22:Without button type23.5:With button typeVolume(mm³)29×13×30:Without button type29×13×35.5:With button typeProduct approvalUL,CUL,TUV,CQCFile No.E133481,R50403813,CQC18002189443Product Description High capacity ( 2 pole: 10  A)Various types available  2 pole configurations5kV dielectric strength      (between coil and contacts)Sockets availableEnvironmental friendly product (RoHS compliant)Outline Dimensions: without button:29.0mm x13.0mm x29.0mm     with button: 29.0mm x13.0mm x34.5mmThe dielectric strength can reach 4000VAC(I/O), and the insulation resistance is 1000MΩTwo mounting types are available: screw mounting and DIN rail mounting.Components available: plastic retainer (Collocation marker), metallic reainer.Coil voltage form: DC,AC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
