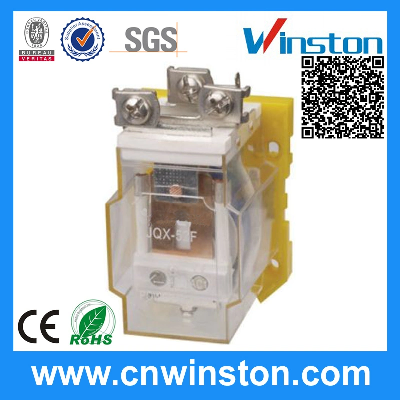

Single Pole Double Throw Industrial Power Electromagnetic Relay with CE

Product Description 1) Outline dimensions: 74.0 x 47.0 x 47.0mm  2) Contact data:  a) Contact arrangement: 1Z(1C,1H) b) Materials: silver alloy  3) Max. switching current: 40A  4) Max. switching voltage: 28V DC / 250V AC  5) Max. switching power: 1.12KW / 10kVA  6) Rated load (resistive): 1Z:28VDC/40A 250VAC/40A                                                2Z:28VDC/40A 250VAC/40A 7) Coil data:  a) Nominal voltage: 6 - 220V DC / 6 - 380V AC  b) Picd-up voltage: AC≤75%, DC≤90%  c) Drop-out voltage: DC≥10%, AC≥30%  d) Coil power: 3.5W / 5.5VA  8) Specifications data:  a) Contact resistance: ≤50mΩ  b) Insulation resistance: ≥500mΩ  c) Dielectric strength Vr.m.s:  i) Between open contacts: ≥1,500V AC  ii) Between coil and contacts: ≥2,000V AC  iii) Between contacts form: ≥2,000V AC  d) Ambient temperature: -45 - +55°C  e) Operation/release time: ≤20/20ms Technical parameters   TypeJQX-52FDimensions (mm)49*48*68Contact form1ZContact capacity40A 250VAC40A 24VACCoil voltageDC6~220VAC6~380VCoil powerDC:≤2.0WAC:≤2.5VAPick-upDC:≤75% AC:≤80%Drop-outDC:≥10% AC:≥30%Contact resistance≤50mΩInsulation resistance≥500mΩService lifeElectrical100000 timesMechanical10000000 timesDielectric strengthBetween open contacts1500v rmsBetween coil and contacts2500v rmsMounting formWeldingOperation temperature-40~+60WeightAbout 150g    PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP. Thank you for your time.   Our Services   1. Prompt reply: Any inquiry or questions would be replied within 24 hours.2.  Quality Product: Manufacture company, each of the products is tested and calibrated.3.  Hospitality: Offer smiling service and your visiting is highly welcomed4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.Trade Information   Trade TermsFOB ,CIF ,CFR,EXW,DDPPayment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGramPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express deliveryPayment conditions30% deposit in advance,70% balance before shipping.Delivery time3-7working days after deposit,2-4 working days for inventoryPackingNeutral carton,Wooden case for large sizeShippingBy sea,by air and by express delivery  For more, please contact us! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
