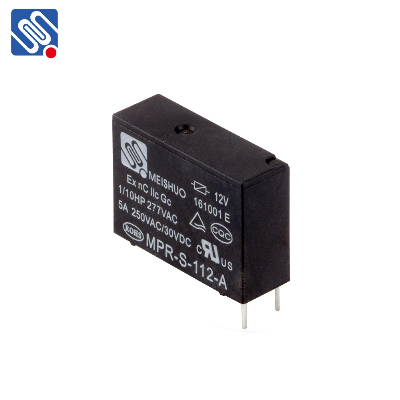

Mpr 5A PCB Refrigerator Compressor Relay Mini Relay

Mpr 5A PCB Refrigerator Compressor Relay Mini RelayRelated products Product informationRelay feature:-5A swithing capability-Height not exceed 7.2mm-Suitable for high-density installation-Anti-surge voltage between coil and contacts is 10KV-High sensitive, coil power only 200mW-RoHS product-Outline Dimensions:( 20.5*7.2*15.0 )mmrefrigerator compressor relay Specification: characteristics Contact Form 1A Voltage drop (initial) 100mV (1A 24VDC)  Contact material AgSnO2 Max.Switching Current 5A Max.Switching voltage 277VDC  Electrical life 100000 ops Mechanical Life 10000000 ops Initial insulation resistance 1000MΩ (500VDC) Dielectric strength 4000VAC/1000VAC Operate Time ≤10ms  Release Time ≤10ms  Ambient temperature -40~+85°C Termination PCB Construction  Sealed type, Dust protected Unit Weight  3gRelay Photo:Drawing:Packing&applicationPackage:-50pcs/box-500pcs/cartonApplications:air conditioners,PLC,Copiers,etc.../* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
