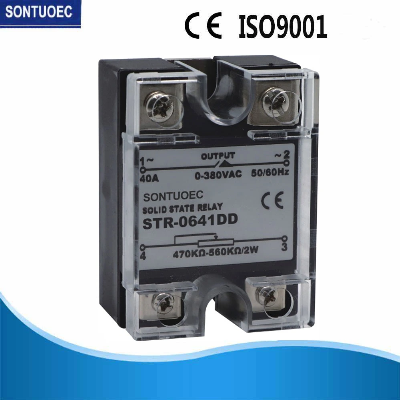

SSR Solid State Relay 10-120A 380VAC Single Phase

Product DescriptionSSR Solid State Relay 10-120A 380VAC Single phase or three phase :A solid state relay (SSR) is an electronic switching device in which a small control signal controls a larger load current or voltage.It comprises a voltage or current sensor which responds to an appropriate input (control signal), a solid-state electronic switching device of some kind which switches power to the load circuitry either on or off, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts.The relay may be designed to switch either AC or DC to the load. It is functionally equivalent to an electromechanical relay, but has no moving parts.Features:Rated Current:10-120ARated voltage:24V-480VSmall General outline Vacuum Weld TechnicalMake R/C(MOV)inside could absorb out ITSMLED mean turn on or OFFClarity protect PanelIEC standardInput & output type could chose DC/AC, AC/AC, DC/DCAutomate Control ; Numerical Control MachineryTypical Applications1.AC, DC Rated Current Switch control :Single Phase ; Three Phase2. Rated Voltage (Temperature,Speed...)Switch control :Single Phase*********************Load Current: 10,15,20,25,40,50,60,80,100,120ALoad Voltage: 24-480VControl Voltage:3-32VDC; 90-250VAC(Voltage Control type SSR)On Voltage:≤ 1.5VBreaking Leakage Current:≤ 2mAOn-off time: ≤ 10sInsulation Resistance: 500MΩ/500VDCAmbient Temperature:-30~+75°cLoad Current:10,15,20,25,40,50,60,80,100,125ALoad  Voltage:24-480VControl Voltage:3-32VDC; 90-250VDC(Voltage Control type:SSR)On Voltage:
