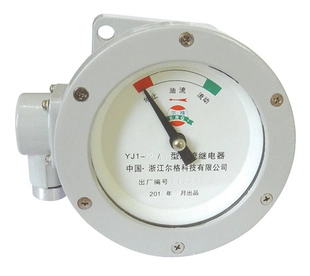

Oil Flow Relay for Transformer

[#Oil Flow Relay for Transformer#] Products OverviewThe flow indicator (the following called "indicator") is a device that displays the change of the oil flow in the forced oil circulating cooling system of the transformer. It is used to monitor the operation of the oil pump of the forced oil circulation cooling system, such as whether the oil pump steering is correct, whether the valve is open, whether the pipeline is blocked, etc., when the oil flow reaches the operating oil flow or decreases to the return oil flow, it can send an alarm signal.[#Oil Flow Relay for Transformer#] Model Instruction[#Oil Flow Relay for Transformer#]Technical Parameters ModelNominal Dia. of  Union Pipe(mm)Max. Oil Flow(M3/H)Action OilFlow (M3/H)Return Oil Flow(M3/H)Contact RatingYJ1-50-20/1550201511380V/3AOR220V/5AYJ1-80-40/3080403022YJ1-80-45/3080453018YJ1-100-40/30100403020YJ1-100-80/60100806040YJ1-100-90/68100906850YJ1-125-80/60125806040YJ1-125-150/10012515010075YJ1-150-40/30150403022YJ1-150-60/45150604530YJ1-150-80/55150805535YJ1-150-80/60150806044YJ1-150-70/50150705036YJ1-150-125/941501259463YJ1-150-135/10115013510175YJ1-150-135/701501357050[#Oil Flow Relay for Transformer#] Company Profiles*Exhibitions[#Oil Flow Relay for Transformer#] Company Profiles*Certificates  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
