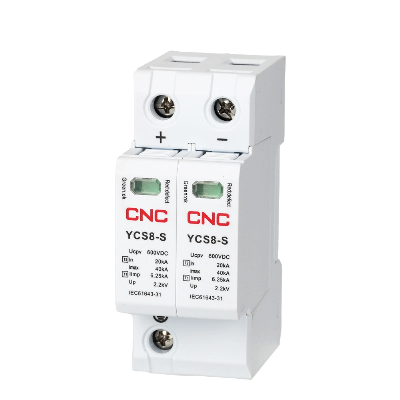

Ycs8 Series 2p 3p IP20 Solar SPD Photovoltaic DC Surge Protective Device

  Product DescriptionYCS8 Photovoltaic DC Surge Protective Device   GeneralYCS8-series is applicable to photovoltaic power generation system. When surge overvoltage occurs in the system due to lightning stroke or other reasonsThe protector immediately conducts in nanosecond time to introduce the surge overvoltage to the earth, thus protecting the electrical equipment on the grid.  Features T2/T1+T2 surge protection has two types of protection, which can can meet Class I (10/350 μS waveform) and Class II (8/20 μS waveform) SPD test, and voltage protection level Up ≤ 1.5kV; Modular, large-capacity SPD, maximum discharge current Imax=40kA; Pluggable module; Based on zinc oxide technology, it has no power frequency aftercurrent and fast response speed, up to 25ns; The green window indicates normal, and the red indicates a defect, and the module needs to be replaced; Dual thermal disconnection device provides more reliable protection; Remote signal contacts are optional; Its surge protection range can be from power system to terminal equipment; It is applicable to direct lightning protection and surge protection of DC systems such as PV combiner box and PV distribution cabinetS1+40PV2PDC600/TypesTest CategoryMaximumdischargecu rrentUse categoryNumberof polesMaximum continuous  working voltageFunctions/:Standard typeS: Upgraded typeI+I:T1+T240:40KAPV:Photovoltaic/direct-current2:2PDC600/:NoncommunicationR: Remotecommunication3:3PDC1000DC1500(Type S only)II:T22:2PDC6003:3PDc1000DC1500(Type S only)  ModelYCS8StandardsIEC61643-31:2018; EN 50539-11:2013+A1:2014Test categoryT1+T2T2Number of poles2P3P2P3PMaximum continuous working voltage Ucpv600VDC1000VDC600VDC1000VDCMaximum discharge current lmax(kA)40Nominal discharge current In(kA)20Maximum impulse current limp(kA)6.25/Voltage protection level Up(kV)2.23.62.23.6Response time tA(ns)≤25Remote and indication Working status/fault indicationGreen/redRemote contactsOptionalRemote terminalswitching capabilityAC250V/0.5ADC250VDC/0.1A/125VDC   0.2A/75VDC/0.5ARemote terminal connection capability1.5mm2Installation and environment Working temperature range-40ºC-+70ºCAllowable working humidity5%.95%Air pressure/altitude80k  Pa.106k  Pa/-500m..2000mTerminal torque4.5NmConductor cross section(maximum)35mm²Installation methodDIN35 standard din-railProtection degreeIP20Shell materialFire-proof level UL 94 V-0Thermal protectionYes CNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxCNC ELECTRIC AC1000V/DC1500V Polycarbonate Fully Plastic Distribution BoxProduct CatalogCompany ProfileOur AdvantagesOur Clients/PartnersPackaging & Shipping  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
