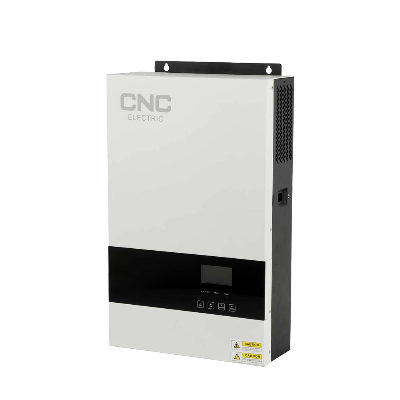

Ycdpo I Model 50/60Hz 5500W 230VAC Solar Hybrid Power Inverter

  Product Description YCDPO I Model 50/60Hz 5500W 230VAC Solar Hybrid Off Grid Energy StoragePower InverterYCDPO I-5500-48Hybrid Solar Power Inverter(High PV Voltage)5500WJust contact to us for more information!Product snapshotModel: 3.5kW/5.5kW/8kW Nominal Voltage: 230VAC Frequency Range: 50Hz/60Hz ModelYCDPOI3500-24YCDPOI5500-48YCDPO18000-48Rated Power3500VA/3500W5500VA/5500W8000VA/8000WInputVoltage230VACSelectable Voltage Range170-280VAC(For Personal Computers); 90-280VAC(For Home Appliances)Frequency Range50Hz/60Hz(Auto sensing)OutputAC Voltage Regulation (Batt.Mode)230VAC±5%Surge Power7000VA11000VA16000VAEfficiency(Peak)up to 93.5%Transfer Time10 ms(For Personal Computers); 20 ms(For Home Appliances)WaveformPure sine waveBattery Battery Voltage24VDC48VDC48VDCFlooating Charge Voltage27VDC54VDC54VDCOvercharge Protection33VDC63VDC63VDCSolar Charger & ACCharger Maximum PV Array Open Circuit Voltage500VDC500VDC500VDCMaximum PV Array Power5500W5500W4000W*2MPPT Range @ Operating Voltage120~450VDC120~450VDC120~450VDCMaximum Solar Charge Current100A100A120AMaximum AC Charge Current80A80A120AMaximum Charge Current100A100A120APhysical Dimension,D×W×H(mm)550×420×225420×561.6×152.4Net Weight (kgs)11.512.121Communication InterfaceUSB/RS232Environment Humidity5% to 95% Relative Humidity(Non-condensing)Operating Temperature-10ºC to 50ºCStorage Temperature-15ºC to 60ºCCompany ProfileOur AdvantagesPackaging & Shipping/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
