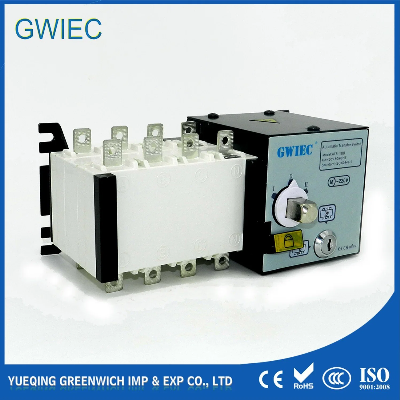

125A 63A Automatic ATS 4p Change Over Transfer Switch with High Quality

Product Information:Product parametre:Product Brand:GWIECProduct Name:Automatic transfer switchProduct Type:ATS-100(100A)Rated frequency (fr):50 Hz-60HzStandards:IEC60947Insulated Voltage Ui:750VMode of operation:Automatic/manualPole:3P/4PConversion time: ≤2sWorking voltage:AC220VApplication:ATS series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 400V, rated voltage DC 220V, Rated current 63A-3200A.Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off. Specification:Conventional thermal current(Ith)100A250A630A1000A1600ARated Current(In)20A40A60A80A100A125A160A250A400A630A800A1000A1250A1600ARated insulation voltage(Ui)750V1000VRated concussion withstand voltage(Uimp)8KV12KVRated working voltage(Ue)AC440VRated working current(Ie)AC-31A20406380100125160250400630800100012501600AC-35A20406380100125160250400630800100012501600AC-33A20406380100125160250400630800100012501600Rated connection capacity10leRated breaking capacity8leRated limited short-circuit current(ls)50kA70kA100kA120kARated short-time withstand current(ls)7kA9kA13kA26kA50kATransfer I-II or II-I0.45s0.6s1.2sControl Power voltageDC24V. 48V. 110V.       AC220VElectrical consumption Rated frequencyStart300W325W355W400W440WNormal55W62W74W90W98WWeight(kg) 4 pole7.07.27.27.27.57.58.89.016.51732364043/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
