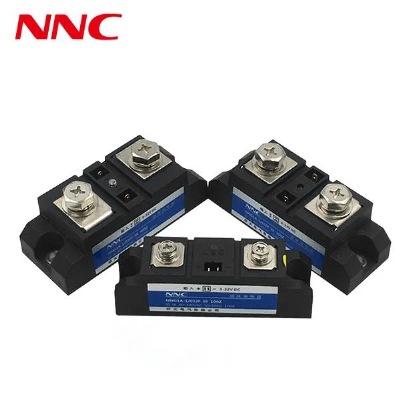

SpecificationDimension94mm*25mm*38mm94mm*34mm*43mm96mm*39mm*43mmModelNNG1A-1/032F-38 60-150ANNG1C-1/032F-120 60-150ANNG1A-1/032F-38 200-350ANNG1C-1/032F-120 200-350ANNG1A-1/032F-38 400ANNG1C-1/032F-120 400ADescriptionSingle phase( Input DC, Output AC )Single phase( Input DC, Output AC )Single phase( Input DC, Output AC )Control voltage032: 3-32VDCControl current5-25mATurn-on voltage3VDCTurn-off voltage1VDCReverse voltage32VDCLoad voltage38: 40-440VAC120: 60-1200VACLoad current60A, 80A, 100A, 120A, 150A200A, 250A, 300A, 350A400AInstant voltage38: 1200VAC120: 1600VACOn-state voltage drop10A ,a radiator is necessary, Load current>80A, fan is necessary.2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage.Matching RadiatorApplicable SSRHeat sinkMeasurementTpyeLoad currentModelL(mm)W(mm)H(mm)NNG1ANNG1C60A Max.NN-0631801255060A Max.NN-0341051008080A Max.NN-0631801255080A Max.NN-03410510080100A Max.NN-03615010080120A Max.NN-03615010080150A Max.NN-03615010080200A Max.NN-03726018050250A Max.NN-03726018050300A Max.NN-038150125135400A Max.NN-038150125135Wiring DragramQ1: Are you Factory?A1:Yes,we focus on relay and micro switch more than 13years. Q2: How do you control the products' quality?A2: Auto inspection machine and manual testing together before packing. Q3: What's your payment term?A3:We usually accept T/T(30% deposit,the balance before delivery.) Q4: Would you accept to use our logo?A4: If you have good quantity,we can make OEM for you. Q5: Can I get a sample for reference?A5: We provide free samples for testing,you only need to pay the express cost. Q6: What is your delivery time?A6: Usually it takes 20-35 working days for production. Q7: What is your warranty time of the products?A7: 12-24 months/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
