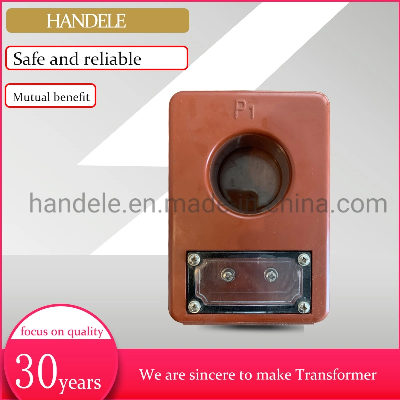

Toroidal CT Current Transformer

Basic Info.TypeVoltage TransformerOperation ConditionIndoorUsageProtection, MeasurementWinding FormSingle Layer & Tightly Wound TypeInsulating MediumEpoxy ResinInstallationBusbar TypeVoltage Transformation PrincipleElectromagnetic TypeCoil NumberAuto TransformerStandardISO9002Ambient Temperature-5~+40Frequency50HzRated Voltage0.5kvMaterialCopperCoil StructureToroidalRated Capacity5vaTrademarkHANDELETransport PackageStandard Export PackingOriginChinaHS Code8504311000Product DescriptionGeneral IntroductionThis current transformer is made indoor cast-resin insulated, totally-enclosed structure. It's designed for current, power measurement and relay protection in AC power system with frequency 50 Hz, rated voltage 10 kV and below.Technical Specification Item NoRated current(A)rated secondary current(A)Measurement LevelRated OutputLMG200,300,400,600,80050.5101000,1200,1500152000,2500,300020400030ProductionNormal working/installation conditions1.  Installation sites: Indoor2.  Ambient temperature : (-5~40)ºC3. Ambient humidity: ≤80%4. Altitude: ≤1000m5. Atmospheric conditions: no serious impurity in the atmosphere. Ordering instructionsWhen the customer ordering, must provide the following information:1product model and Install the bus width;2, current ratio;3, rated output, and the corresponding accurate level;4, if you have special requirements, can be customized consultation with the manufacturer.Why Choose Us1:Over 10 years experience in production and processing2:faster product innovation, production specialization, timely delivery3:Strict quality inspection procedure
