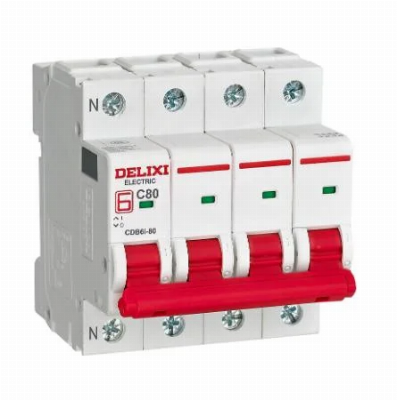

Delixi Cdb6I Solar AC RCCB 63A Miniature Circuit Breaker

Outline and Installation dimensionsMain characteristicsRated operational voltage1P: 230/400V, 240/415AC1P+N: 230/240 AC2P,3P,3P+N,4P: 400/415ACRated current (A)80Rated frequency (Hz)50/60Number of poles1P, 1P+N, 2P, 3P, 3P+N, 4PBreaking Capacity (kA)6Compliant with standardsGB/T 10963.1, IEC60898-1Compliant with certificationCCC, CE, RoHSOperating temperature-35ºC~70ºCProduct nameNumber of PolesTrip typeRated currentAssemblable componentsCDB6i-801C80OF61: 1P2: 2P3: 3P4: 4P5: 1P+N6: 3P+NB: type BC: type CD: type D80AOF6:Auxiliary contactSD6: Alarm contactFF6: Double auxiliary contactsFS6: Auxiliary+alarm contactMO6: Shunt excitation+auxiliaryMOWY6: Passive shunt+auxiliaryMV6: Overvoltage protection releaseMN6: Undervoltage protection releaseMVMN6: Overvoltage and undervoltage releaseMSN6: Voltage loss release             /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
