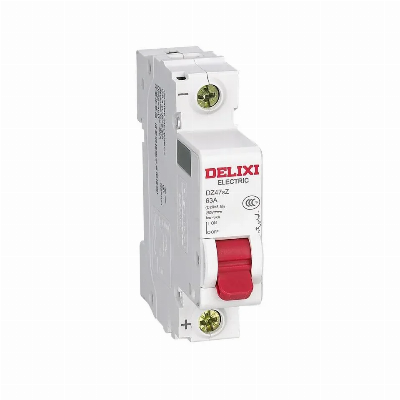

Hot Selling Dz47sz 1A-63A 1p 2p 3p DC Miniature Circuit Breaker

DZ47sZ series is Delixi electric Navigator series range of Miniature Circuit Breakers designed to protect the power system from short circuit and overload faults.Navigator series MCB is mainly used in commercial and residential buildings, including 18mm AC MCB, 27mm AC MCB, phase neutral MCB, and DC MCB.The DZ47sZ small DC circuit breaker is used in the Navigator series of terminal products for overload protection, short circuit protection, and infrequent switching of DC lines or equipment. And it can be widely used in various fields such as communication power sources, new energy charging stations, power systems, DC power sources, rail transit, shipbuilding, and metallurgy.It complies with standard of GB/T14048.2 and IEC60947-2ModelDZ47sZRated working voltage1P:DC250V; 2P/3P: DC500VRated frequency50HzRated working current1-63ABreaking capacity6kARated Insulation voltage 500VNumber of Poles1,2,3PBreaking Capacity 6kAMechanical life (times)20000Electric life (times)20000 times (In ≤ 100A)6000 times (In ≥ 100A)   DZ47sZ DC miniature circuit breakerProduct nameBreaking capacity Number of poles Trip type Rated current DZ47sZDefault 2C6Default: Breaking 6kA 1P: DC250V2P/3P: DC500V1: 1P2: 2P3: 3PB: C type C: C type1: 1A2: 2A3: 3A...63: 63ANote: The product can be assembled with accessories OF, SD, MSN, MV, MN, MVMN, FF, FS, MO (active type), and MOWY (passive type)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
