Voltage Sensitive Relay Module

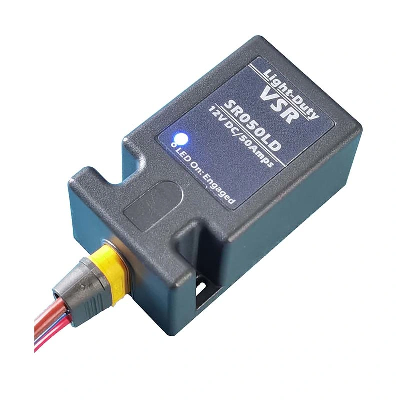

Voltage Sensitive Relay ModuleModel: SR050LDAutomatic control for Dual-battery systemSuitable for smart/Euro 6 alternatorsDelay on off function designPlug-in connection designIgnition protectionWater and dust proof (IP65)Compact sizeRatings: 12Vdc, 50Amp continuous, 80Amp intermittentEngage/Disengage#1: 13.3/12.8Vdc, 10s delayEngage/Disengage#2(ACC/IGN control): 13.3/12.8Vdc, 10s delayHigh Voltage Protection: 15.5VdcOperating Current: 150mAStandby Current: 5mA max.ACC/IGN control: for smart alternator onlyConnector; 12AWG/18AWG, 100mm lead wiresIngress Protection: IP65 (main unit)Dims: 75*45*35mm (plastic housing)Net Weight:: 0.13KgsBasic operational characteristicsProtect the charging system:The Voltage Sensitive Relay Module monitors the battery system to determine if the batteries are being charged. Whenthe engine batteries reach 13.3-13.4 volts,indicating charging is taking place, the SR will engage,joining the two batterybanks. If the drain on the charging system by the auxiliary or drain main battery bank reduces the system voltage below12.6-12.8 volts, the SR wil disconnect the battery banks from each other, the protecting the respective battery banks fromexcussive drain.Note:the disconnect has 5-10 seconds delay preventing the relay from disconnecting during a momentary drop in voltage.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
