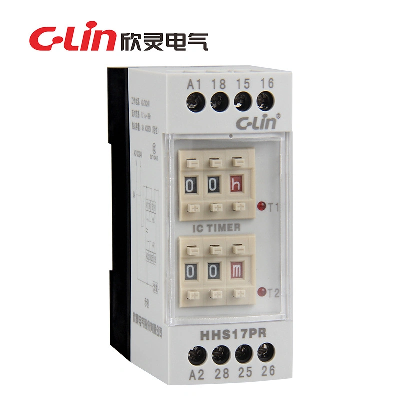

Hhs17pr Rail Mounted Time Delay Relay with Repeat Operation

HHS17PR rail mounted time delay relay with repeat operation  DescriptionHHS17P series timer relay used as time delay component in the control circuit with AC 50Hz, AC 380V and below or DC 24V, to make or break the circuit at preset time.Product FeaturesWith indicator light, flickering during timing.Light on after timing complete to indicate the product running status.Adopt imported high accuracy IC.High anti-interference performanceCan directly mounting on 35mm standard rail.Or can fixed mountingTechnical InformationPower supplyDC24V; AC24V, AC220V, AC380VTime delay range0.1s-99h Repeat tolerance≤1%Working modeHHS17P: Power ON delayHHS17PR: Cycler delayContact formTwo set delay contactContact capacity3A AC250V (Resistive)Outline size33x78x68.5mmMounting methodFixed mounting or 35mm DIN railOutline DimensionsWide application rangeFeatures:1. With cover protection, dust proof and avoid mis-operation2. Wiring diagram printed at side easy for wiring 3. PCB adopt SMT production technology4. Tunnel type wiring terminal more relaible and stableProduct showOriginal Packing Box/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
