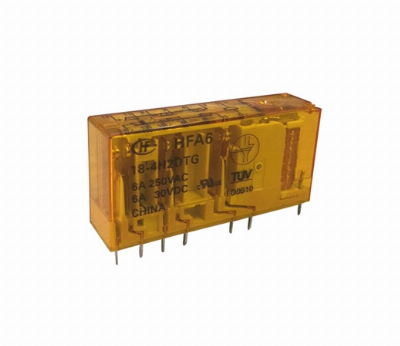

Industrial Relay Base A6 Power Control Relay

Product Description A6:  Multi contact arrangements: 5NO+1NC,     4NO+2NC, 3NO+3NCForcibly guided contacts according to EN502056A switching capabilityLow input power: 500mWHigh insulation capability: 10kV surge voltage      between input and outputUL insulation system: Class F availableEnvironmental friendly product (RoHS compliant)Outline Dimensions: (50.0 x 13.0 x 24.0) mmA6A:  Forcibly guided contacts according to IEC 61810-3 (EN50205) 8A switching capability 4kV dielectric strengh(between coil and contacts) UL insulation system: Class F available Environmental friendly product(RoHS compliant)TypeHFA6Coil voltage formDCCoil voltage36, 9, 12, 48, 24, 6, 18Contact arrangement5Form A+1Form B , 3Form A+3Form B, 4Form A+2Form BContact versionSingle contactTerminal typePCBSortSingle side stableContact capacityAgSnO2Insulation standardB, FContact platingNo gold Plated, &x1C;&x06;Gold PlatedPacking methodplastics packingRated voltage(V)250VACCoil angel formPCBCoil powerApprox.0.5WDielectric strength (between coil & contacts) (VAC 1min)4000VAC 1minOperate time(ms)≤20Release time(ms)≤20Coil resistance(Ω)6:72;9:162;12:288;18:648;24:1152;36:2592;48:4608Creepage Distance(mm)8Electrical Distance(mm)5.5Insulation resistance(MΩ)1000Max. switching Current(AC)6Max. switching Current(DC)6Max. switching voltage(VAC)400Max. switching voltage(VDC)30Ambient temperature (max)(ºC)-40Ambient temperature (min)(ºC)+85Mechanical endurance min10000000Electrial eddurance min100000Contact gapNil:0.8Product DescriptionSafety relayApplicationappliances,etcWeight(g)Aporox. 25Volume(mm³)50×13×24Product approvalUL,TUV,CQCFile No.UL:E134517,TUV:B120553286004,CQC:CQC16002150625/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
