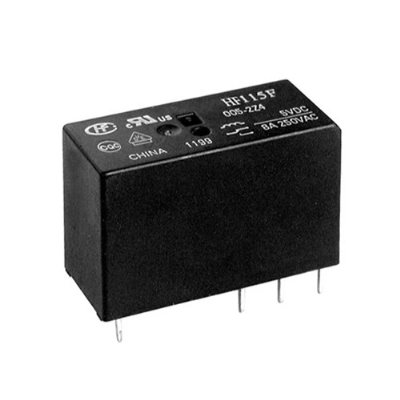

TypeHF115FCoil voltage formDCCoil voltage60, 12, 18, 5, 48, 24, 6, 110, 9Contact arrangement1 Form C, 2 Form A, 1 Form B, 1 Form A, 2 Form B, 2 Form CContact versionSingle contactTerminal typePCBMountingPCB-THTConstructionPlastic sealed, Flux proofedTerminals5.0mm 2 pole 8A, 5.0mm 1 pole 16A, 5.0mm 1 pole 12A, 3.5mm 1 pole 12ACoil powerstandard formSortStandardContact capacityAgSnO2, AgCdO, AgNiInsulation standardClass B, Class FContact platingWithout plating, Au platedPacking methodTube packing or tray packingRated voltage(V)250V.a.cCoil powerApprox 0.4Dielectric strength (between coil & contacts) (VAC 1min)5000VAC 1minOperate time(ms)≤15Release time(ms)≤8Coil resistance(Ω)005:62×(1±10%)Ω006:90×(1±10%)Ω009:202×(1±10%)Ω012:360×(1±10%)Ω018:810×(1±10%)Ω024:1440×(1±10%)Ω048:5760×(1±15%)Ω060:7500×(1±15%)Ω110:25200×(1±15%)ΩCreepage Distance(mm)10Electrical Distance(mm)10Insulation resistance(MΩ)1000Max. switching Current(AC)1H:12A/16A1Z:12A/16A1D:12A/16A2H:8A2Z:8A2D:8AMax. switching voltage(VAC)440VACMax. switching voltage(VDC)300VDCAmbient temperature (max)(ºC)-40Ambient temperature (min)(ºC)85Mechanical endurance min10000000Electrial eddurance min100000(See approval reports for more details)IEC60335-1accord withExplosion-proof certificationUL,VDE,TUV,IECExProduct DescriptionClapper Type Electromagnetic RelayApplicationappliances,intelligent home,Thermostat,etcWeight(g)Aporox. 13.5Volume(mm³)29.0×12.7×15.7Product approvalVDE,UL,CQCFile No.VDE 116934,UL E134517,CQC CQC17002168381Product Description Multi Contact RelayIntroducing the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD. This relay is designed to meet the reading habits of English-speaking natives, offering a range of features and benefits that make it a reliable and efficient choice for various applications.Features:Multi contact arrangements: 2NO+2NC, 3NO+1NCForcibly guided contacts according to EN502056A switching capabilityLow input power: 360mWHigh insulation capability: 10kV surge voltage between input and outputUL insulation system: Class F availableEnvironmental friendly product (RoHS compliant)Outline Dimensions: (40.0 x 13.0 x 24.0) mmWith its multi contact arrangements, this relay provides flexibility and versatility in various electrical circuits. The forcibly guided contacts ensure reliable and safe operation, meeting the standards set by EN50205. With a switching capability of 6A, it can handle high electrical loads with ease.Featuring low input power of only 360mW, this relay offers energy efficiency and helps reduce power consumption. The high insulation capability, with a surge voltage of 10kV between input and output, ensures optimal safety and protection against electrical surges.Our Multi Contact Relay is designed with an UL insulation system, with Class F available, providing added reliability and durability. Additionally, it is an environmentally friendly product, compliant with RoHS regulations.With its compact outline dimensions of (40.0 x 13.0 x 24.0) mm, this relay can easily fit into various applications without occupying excessive space.Choose the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD for a reliable and efficient solution to your electrical circuit needs./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
