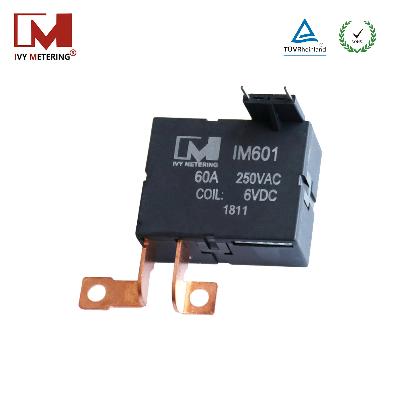

Miniature Electronic Power Switch Contactor Magnetic Latching Relay

Basic DataDimension(mm)38×30×16.5Weight ( g )≈33gContact Arrangement1A/1BContact MaterialAgSnO2Ambient Temperature-40~+70ºCAmbient Humidity45%~90%RHVibration10~55Hz,1.5mm(DA)Specification DataNominal Voltage6~48VDCPower ConsumptionSingle Coil:1.5W, Dual Coil:3WMax. Switching Voltage250VACMax. Switching Current60AMax. Switching Power15000 VAContact Resistance1500VAC   1minCoil to Contact>4000VAC   1minElectrical Life>10,000cyclesMechanical Life>100,000cyclesPicking-up & Release Time=100msFunctional Shock Resistance10GDestructive Shock Resistance100G           Cautions of Latching Relay:             1.Suggestions of relay's input             (1)Polarity-Please check the polarity inside of our technical specification, if single coil then"+ -" or "- +"are fine,             you can change it by one pulse.If double coil then it's necessary to confirm "-+-" or "+-+"before leaving the our factory.             (2)Driving-Please energize the relay at our recommend pulse width, rated voltage for reliable performance, if 1.5             times or 2 times of value or lower driving condition plz confirm with our engineer.             (3)Relays'contact status may be changed during transportation or installation due to impact of external force,             therefore please reset to the required status.               2.Suggestions of relay's output             (1)When choosing the relay with hard connection,please avoid the external force on load terminals during or after             the installation.             (2)When the relay will be connected with screw or bolts to the relays' terminals, plz make sure your connection is             fastened and prevent relay from damages or other safety problems due to temp. Rise..             (3)The sampling signal wires of products are limited, please do not pull or torque during installation. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
