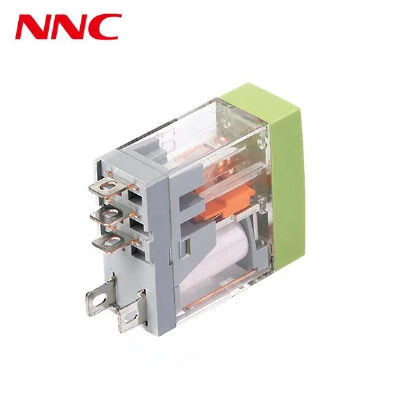

General Purpose Relay NNC69KTL-1Z (14FT) for Walls Switch

SpecifacationDimension28.8mm*12.7mm*34mmContact FeatureForm1Z(SPDT),1H(SPST-NO),1D(SPST-NC)Rated loadNO:15ANC:12AMax switching voltage240VAC/28VDCContact resistance≤100mΩMaterialAg Alloy(AgSnO2)Electrical life≥1*105Mechanical life≥1*107Operate voltage (23ºC)DC:≤75%*Rated voltage, AC:≤80%*Rated voltageRelease voltage (23ºC)DC:≥10%*Rated voltage, AC:≥30%*Rated voltageMaximum voltage (23ºC)110%*Rated voltageCoil voltageDC3-110V, AC6-240V (Customize allowed)Coil powerDC: 0.53W, AC: 1.2VAPick-up time≤20ms  Release time≤10msDielectric strengthBetween open contacts of same pole1200VAC/1min(leakage current 1mA)Between contacts of different pole1200VAC/1min(leakage current 1mA)Between contacts and coil5000VAC/1min(leakage current 1mA)Insulation resistance≥100mΩ(500VDC)Ambient temperature-55ºC ~70ºCAmbient humidity35%-80%RHAtmospheric pressure86-106KPaShock resistance10G (sinusoidal half-wave pulse: 11ms)Vibration resistance10-55Hz (double amplitude: 1.5mm)InstallationPCB or Socket with DIN RailWeightApprox. 16g/PCSPackingCarton with foam box inside500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 342×263×325Carton with foam tube inside500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 338×135×185Wiring Diagram/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
