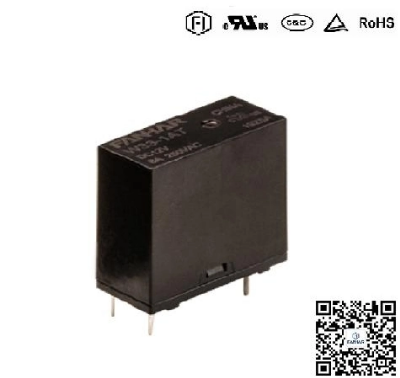

General Relay Agsno2 Contact Material for Smart Meter

Basic InfoModel NO.: W33Contact Form: 1A = 1 OPEN CONTACTS  Product protective:  S=Sealed   Nil= Soldered  Contact material: T=AgSnO2   Insulation system:  Nil: B level    F: F level Dimension: 23.8*10.5*24.5  MMWeight: Approx 12gTrademark: FANHAROrigin: ChinaProduct Description1. 8A contact switching capability 2.Creepage distance and spacial distance are greater than  6mm 3. Normally open type has the UL certification of TV-5  125VAC, the impact current is 78A4. UL Insulation class :F grade   Contact  Data:Contact  Form1A  Rated load 5A  250VAC/30VDC Max Switching Voltage277VAC/30VDC Max Switching Current8A                Max Switching Capacity 1250VA/150WMin allowing load 5VDC 100mA Contact  Resistance100mΩ (at 6VDC 1A)Insulation Resistance 1000MΩ  (at 500VDC) General Data:Withstand Voltage    Between open contacts1000VAC  1min                    Between coil and contacts4000VAC  1minWithstand impact voltage  Between coil and contacts 8KV(1.2x 50us)Operate TimeMax.15msRelease TimeMax.5msMechanical life 5,000,000 ops  ON/OFF = 0.1s/0.1sElectrical life 5A 250VAC/30 VDC          100,000 ops  ON/OFF=1s/9sImpact Resistance      Misoperation                        Durability 100m/s²   Approx10G1000m/s²   Approx100GVibration Resistance    Misoperation                       Durability 10 - 55 Hz  1.5mm  Double Amplitude 10 - 55 Hz  1.5mm  Double AmplitudeTemperature Range-40ºC to +85ºCHumidity5% to 90% Installation type PCB Mounting  Coil Data:Standard: Coil rated voltageOperating voltageReleasing Voltage Coil rated Current(±10%)Coil resistance(±10%)Rated consumed powerAllowing voltage DC 5VBelow 75% rated voltage (initial)Above 5% rated voltage (initial50mA100Ω250mW90-130 %Rated voltage DC 9V27.8mA324ΩDC 12V20.8mA576ΩDC 24V10.4mA2304Ω      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
