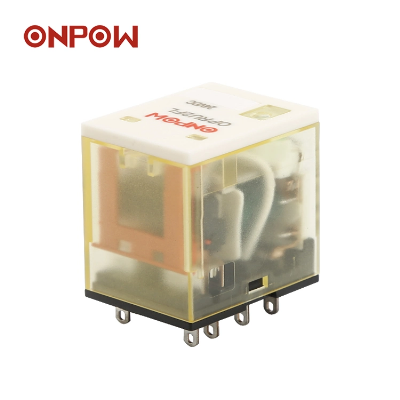

Onpow 8A General Purpose Relay with LED/2 Sets (ORU2FL)

1. Product featuresLoad 2F 8A;4F 5AVarious specifications, equipped with LED indicator deviceWith mechanical indicator windowContact RatingsContact form2F4FRated load(Resistive load)8A/250VAC, 30VDC5A/250VAC, 30VDCSwitching power(Resistive load)2000VA, 240W1250VA, 150WContact resistance(initial)≤50mΩContact materialsAg alloyElectrical life1*105 timesMechanical life2*107 timesPerformance parameterMust-iperate voltage (23ºC)DC:≤75% (rated voltage), AC:≤80% (rated voltage),50/60Hz(rated voltage)Must-release voltage (23ºC)DC:≥10% (rated voltage)AC:≥30% (rated voltage),50/60Hz(rated voltage)Maximum voltage (23ºC)110% (rated voltage)Coil power consumptionDC: Approx. 0.9AC: Approx. 1.2Operate time (rated voltage)≤20msRelease time (rated voltage)AC: ≤25ms≤15ms, Built in freewheeling diode type: ≤25msInsulation resistance1000MΩ (500VDC)Dielectric StrengthBetween contacts of same polarity :1000VAC/1minBetween contacts of different polarity :                                             2F:2000VAC/1min (Leakage current 1mA)                               4F:1500VAC/1min (Leakage current 1mA)Between contact and Coil: 2000VAC/1min (Leakage current 1mA)Ambient temperature-40-70ºCAmbient humidity5%~85%RHAtmospheric pressure86~106KPaShock resistanceStability: 98m/S2Strength: 980m/S2Vibration resistance10~55Hz double amplitude:1.0mmInstallation modePlug-In typePackaging formDust cover typeWeightApprox. 32g3. Coil Ratings (23ºC)      Rated Voltage V.DC6122448100~110220Coil resistance Ω4116566227251144053780Rated Voltage V.AC122448110~120220~240 Coil resistance Ω45180785443015900 Note: Coil resistance tolerance: Nominal value of coil rated voltage
