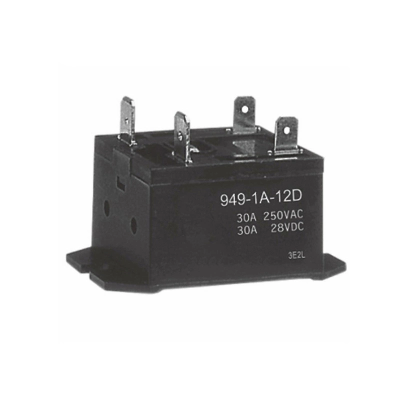

Hot Selling Cheap Price Parts 30A 250VAC Overload Relay Refrigerator

NINGBO COOLWELL COMPANY. Had developed into a leading professional manufacturer and supplier in the field of A/C and Refrigerator spare parts and tools.Now we are dealing more than 1300kinds of products, our products range includes compressors, capacitors, contactors, relay, fan motors, condenser, refrigerant oil, refrigerant gases, filter driers, charging valves, expansion valves, gas separator, oil separator, defrost timers, pressure gauges, thermostats, copper fittings and brass fittings, copper coils, copper straight pipes, flaring tools, bend tube, cutter etc which are used for HVAC.By modern management and strictly quality test before any shipment, our product quality is becoming better and better. Meanwhile, we also can provide OEM service, ODM service, and customized order service. Due to their competitive price and good quality, our products have been exported worldwide, such as Europe, the Middle East, Africa, and South America.To meet our clients' requirements is our goal, and to develop mutual-beneficial business cooperation with customers is our pursuit. If you feel interested in our products, please feel free to contact us for further information.Contact Form1A SPST-NOMax. Switching Power7500VA 840WMax. Switching Voltage250VAC 28VDCMax. Switching Current30AMin. Switching Current/Vottage100mA 5VDCRating Load(Resistive)30A/250VAC,30A/28VDCContact MaterialAg Alloy Electrical Life1x10Mechanical Life1 x10 Insulation ResistanceMin, 1000MΩ 500VDCContact Resistance(lnrtial)≤100mΩ (6VDC 1A)Operate Time≤10msRelease Time≤8msInitial Dielectric Strengthbetween open contacts            50/60HZ 1200VAC 1min.                     between contacts and coil            50/60HZ 4000VAC 1 min.Vibration ResistanceMalfunction:10 ~55Hz Double Amplitude      1.5mmDamage limits:10 ~55Hz Doublg Amplitude      1.5mmShock ResistanceMalfunction:10GDamage limits:100GAmbient Temperature -40ºC ~ +85ºC No freezingRelative Humidity85% at 40ºCUnit WeightApprox. 55g COIL TYPECoil Nominal Voltage (V)Coil Resistance (Ω±10%)Pick-UpVoltage(Max)Drop-OutVoltage(Min)NominalCurrent(mA)DC Standard Coils (abt. 1.2W)6304.50.62001212091.21001827013.51.866.724480182.450481920364.82Max Continuous Voltage at 20ºC: 130% of Coil Normal Voltage.  949-1A· 6 D P1 2 3 4 51. Model Number 2. Contact Arrangement1A = 1 Form A3. Coil Voltage6,12,18,24,48VDC4. Coil TypeD=DC5. Terminal ArrangementNil= General Type (Top Tab Terminal)P = Top Tab Terminal(Bottom P.C.B Terminal) FEATURES • UL safety approval. • 30Amp,small Tab Terminal Type power relay.   • High Insulation current 65A.• Surge strength: 4,000 VAC.• 1 Form A (SPST-NO) contact. • Nominal power 1,200mW.• Operating power 680mW.• Tab Terminal.• Printed Circuit Coil Terminals Type Available.UL FILE.:E169563  • Small package - Meet High Density Mounting Requiremont./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
