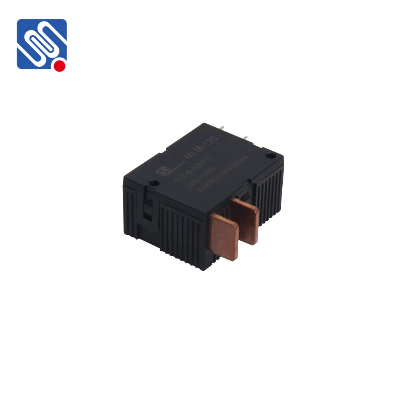

4pins 5pins 40*35*18mm Meishuo Zhejiang, China Electric Magnetic Latching Relay

                                                                                                                                   MLM Latching Relay   120A 250VAC Switching Capability4 kV Dielectric Strength (Between Coil And Contact)Environmental Friendly Product(RoHS Compliant)Outline Dimensions: 40*35*18 mm    Contact Parameters  Contact Form1 A, 1 BContact MaterialSilver AlloyContact Resistance≤ 1.0 mΩ (1A 6 VDC)Contact Rating(Res. Load)120 A 250 VACMax. Switching Current(Res. Load)120 A (Resistive)Max. Switching Voltage(Res. Load)250 VAC (Resistive)Max. Switching Power30 KVAElectrical Life1*104 OPSMechanical Life1*105 OPS  Characteristics  Insulation Resistance1000 MΩ Min. (500VDC)Dielectric StrengthBetween Coil & Contacts: 4000VAC 1minBetween Open Contacts: 2000VAC 1minOperate Time≤ 20msRelease Time≤ 20msShock ResistanceFunctional98 m/s2Destructive980 m/s2Vibration Resistance10Hz~55Hz 1.5mm (DA)Humidity45% ~ 90%RHAmbient Temperature-40ºC ~ 70ºCTerminationQCConstructionDust ProtectedUnit WeightApprox.: 75g  Coil Data (23ºC)  Rated VoltageSet/Reset VoltagePulse DurationCoil ResistanceCoil PowerVDCVDCWSΩ±10%W6≤ 4.8≥ 50                                        12 9≤ 7.2≥ 50Single CoilLatching27Approx.3.012≤ 9.6≥ 504824≤ 19.2≥ 501926≤ 4.8≥ 50Double CoilsLatching6/6 9≤ 7.2≥ 5013.5/13.5Approx.6.012≤ 9.6≥ 5024/2424≤ 19.2≥ 5096/96  How to choose MLQ-100   MLM-120112-A-T1-R(XXX)Model:MLQ       Load:120 AContact Group:1 GroupCoil Voltage:06,  09,  12,  24Contact Form:A: NO(Normally Open)       B: NC (Normally Closed)Coil Type:T1 Single Coil T2 Double CoilsPolarity CharacteristicsR: Negative PolarityNone: Positive PolaritySpecial CodeCustomer Special Requirement  Outline Dimensions, Wiring Diagram  Who Is Meishuo?Meishuo is An Export And Manufactory For Relays and Solenoid Valves More Than 13 Years Meishuo Has 3 Product Business Plants, PCB Relays & Laching Relays For Smart Home, Automotive Relays For Cars, and Solenoid Valves For Household Water Treatments. Meishuo Has Approved By ISO/TS16949, ISO9001, ISO14001, OHSAS18001. And, we have UL, TUV, CQC, ROHS, REACH for our Products. Meishuo Pays a lot of Attention to the Clearness of Workshops, Our workshops are dust-free and constant temperature & humidity workshops. Every person entering the workshop should wear anti-static clothing Meishuo likes to provide free samples for every customer with an inspection report for each sample, customer can check products' quality well before place official order.  Q & CQ: How many employees do you have? A: About 700-800. Q: What famous companies are working with you? A: We are working with Media, Haier, Toshiba, Hella Q: Could you provide samples for free? A: Yes, but you need to bear the shipping cost, we could return the shipping cost when the official order coming Q: How long could I get samples? A: It usually takes 3-7 days then we arrange the shipping. Q: What's the lead time for my Bulk order? A: 1)If have stock, it takes 1-3 days to arrange the shipping when payment coming     2) No stock, usually takes 15-35 days to get the goods     3) During special circumstances such as National Day and Spring Festival, the time may change, according to PMC's production schedule     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
