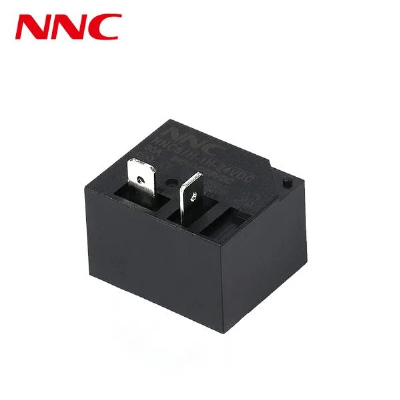

Mini PCB Relay NNC67H-2 (T93) DC24V 5pins 30A 40A

SpecifacationDimension32.4mm*27.4mm*21mmContact FeatureForm1Z(SPDT); 1H(SPST-NO); 1D(SPST-NC)Rated load30A40AMax switching voltage277VAC/30VDCContact resistance≤100mΩMaterialAg Alloy(AgSnO2; AgCdO)Electrical life≥1*105Mechanical life≥1*107Operate voltage (23ºC)DC:≤75%*Rated voltage, AC:≤80%*Rated voltageRelease voltage (23ºC)DC:≥10%*Rated voltage, AC:≥30%*Rated voltageMaximum voltage (23ºC)110%*Rated voltageCoil voltageDC3-110V, AC6-240V (Customize allowed)Coil powerDC: 0.93W, AC: 1.5VAPick-up time≤15ms  Release time≤10msDielectric strengthBetween Same-pole contacts2500VAC/1min(leakage current 1mA)Between contacts and coil1800VAC/1min(leakage current 1mA)Insulation resistance≥100mΩ(500VDC)Ambient temperature-55ºC ~70ºCAmbient humidity35%-80%RHAtmospheric pressure86-106KPaShock resistance10G (sinusoidal half-wave pulse: 11ms)Vibration resistance10-55Hz (double amplitude: 1.5mm)InstallationPCBWeightApprox. 28g/PCSPackingCarton with paper box inside500PCS/Carton, G.W.: 16KG, N.W.: 15KG, Dimension(mm): 360×210×415Wiring DiagramQ1: Are you Factory?A1:Yes,we focus on relay and micro switch more than 13years. Q2: How do you control the products' quality?A2: Auto inspection machine and manual testing together before packing. Q3: What's your payment term?A3:We usually accept T/T(30% deposit,the balance before delivery.) Q4: Would you accept to use our logo?A4: If you have good quantity,we can make OEM for you. Q5: Can I get a sample for reference?A5: We provide free samples for testing,you only need to pay the express cost. Q6: What is your delivery time?A6: Usually it takes 20-35 working days for production. Q7: What is your warranty time of the products?A7: 12-24 months/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
