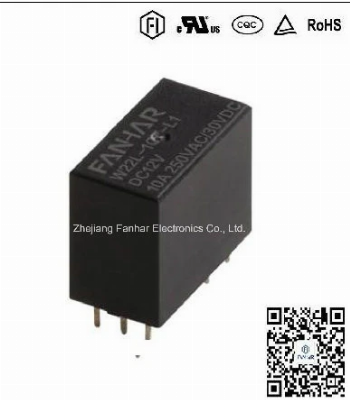

Mini Latching Relay with Open Contact Form for Smart Meter

Basic InfoModel NO.: W22L Contact Form: 1A = 1 OPEN 1B = 1 CLOSEProduct Protective: Nil: Soldered  S: Sealed Contact material: T=AgSnO2   Coil Type: L1= Single Coil   L2 = Double CoilInsulation Grade: Nil: B grade    F: F grade Dimension: 24.5*13*16.5  MMWeight: Approx 12gTrademark: FANHAROrigin: ChinaProduct Description1. 20A contact switching capability 2. Be able to bear 750A short-circuit inrush current. 3.UL insulation class: F grade  Contact  Data:Contact  Form1A 1B  Rated load 10A  250VAC/30VDC16A  250VAC Max Switching Voltage277VAC/30VDCMax Switching Current20A                Max Switching Capacity 4000VA/300WMin Allowing load 5VDC 100mA Contact  Resistance50mΩ (at 6VDC 1A)Insulation Resistance 100MΩ  (at 500VDC) General Data:Withstand Voltage    Between open contacts1000VAC  1min                    Between coil and contacts 4000VAC  1minWithstand impact voltage  Between coil and contacts 10kv(1.2X50us)Operate TimeMax.15msRelease TimeMax.15msMechanical life 1,000,000 ops  ON/OFF = 0.1s/0.1sElectrical life 10A 250VAC/30VDC  100,000 ops ON/OFF=1s/9s16A 250VAC         50,000 ops ON/OFF=1s/9sImpact Resistance      Misoperation                        Durability 98m/s²   Approx10G1000m/s²   Approx100GVibration Resistance    Misoperation                       Durability 10 - 55 Hz  1.5mm  Double Amplitude 10 - 55 Hz  1.5mm  Double AmplitudeTemperature Range-40ºC to +85ºCHumidity5% to 90% Installation type PCB Mounting CertificationUL/C-UL:E340054 Coil Data:Single Coil:Coil rated voltageOperating voltageReleasing Voltage Coil rated Current(±10%)Coil resistance(±10%)Rated consumed powerAllowing voltage DC 5VBelow 75%rated voltage (initial)Below 75%rated voltage (initial)100mA50Ω500mW90-150 %Rated voltageDC 6V83mA72ΩDC 9V55.6mA162ΩDC 12V41.7mA288ΩDC 24V20.8mA1152Ω      Double Coil:Coil rated voltageOperating voltageReleasing Voltage Coil rated Current(±10%)Coil resistance(±10%)Rated consumed powerAllowing voltage DC 5V Below 75%rated voltage (initial) Below 75%rated voltage (initial)200/200mA25/25Ω  DC 6V167/167mA36/36Ω 100mW 90-150 %Rated voltageDC 9V111/111mA81/81ΩDC 12V83/83mA144/144ΩDC 24V41.6/41.6mA576/576Ω  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
