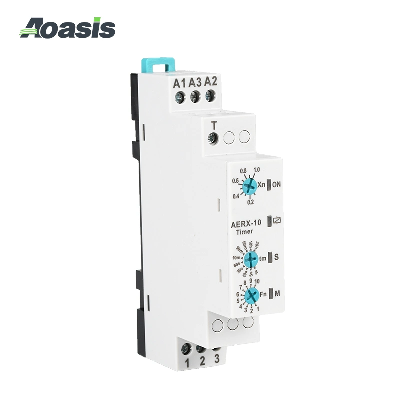

Factory Direct Manufacturer Aoasis Aerx-10 Good Quality Multifunctional Timer Relay

  Product DescriptionGeneralAERX-10 time relay is specifically designed for controlling the time and incoming data and can be used in industry,residential,factory facilities.Device's Adjusting Buttons:Function button (Fn): This button determines the functions. Please choose the desired function from the table.Max Time button (tm): This button determines the maximum time demand. It has a maximum of 10 time value.Time Multiply Button(Xn): It allows you to reach at intermediate values by multiplying maximum values.It has 10 step multiplyingvalue between 0.1-1.0Usage of Device and Working Principle:Please connect the device according to the diagram.Please define the function and time settings before energising the device.Time=Maximum time(tm) x Time Scale Factor (Xn)Example: Lets say If the device is energised, it is desired that the relay becomes activated for 15 mins. and then should not bedeactivated until de-energised.Adjust the fn button to 2.Then adjust the MAX button (tm) to 30 min [g] and the time scale factor button to 30m.[ 15 min= [30min]x0.5] After the desired function and time is adjusted, the device can be energised accordingly.Technical Parameters: Type AERX-10 Operating Voltage(Un) 150-260V AC(A1-A2), 24V AC/DC(A2-A3)  Operating Frequency 50/60Hz Operating Power
