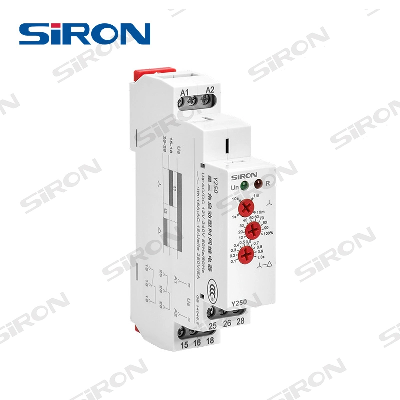

Siron Y25 Delay on Motor Delta Starter Timer Relay

 Features* AC220, AC/DC12V-240V ultra wide operating voltage Specifications optional. * Specially used for motor star triangle start control, can greatly simplify the electricityGas line,  convenient connection, reduce the cost.SpecificationsModelY250Y250-1 Output number of contact groupsTwo sets of changeover contactsOutput contact current2×16A(AC1)Output contact voltage250VAC/24VDCRated control supply voltageAC 220V(50-60Hz)AC/DC 12-240V(50-60Hz)Consumed powerACmax.6VA/1.3WAC 0.3-2VA/DC 0.1-1.2WPower supply allowable fluctuation range-15%;+10%Power indicator lightGreen LEDDelay rangeStart-up delay: 0.1 second-10 minutes, conversion delay: 0.1 second-1 secondSet wayKnobSetting precision10%Repeat accuracy0.2%Temperature fluctuation error0.05%/ºC,at=20ºC(0.05%ºF,at=68ºF)Minimum switching power500mWOutput relay indicationRed LEDMechanical life1×107Electrical life (resistive load)1×105Reset the timeMax 200msOperating environment temperature-20ºC~+55ºCStore and transport ambient temperatures-35ºC~+75ºCinstallation35mm rail installationProtection gradeIP20Installation positionArbitraryInstallation altitude≤2000mPollution levels2Wiring ability1×2.5mm2or2×1.5mm2 0.4N.mOverall dimensions90mm×18mm×64mmConform to the standardGB14048.5,IEC60947-5-1,EN61812-1     Product DescriptionCompany Profile         Certifications    Delivery      FAQ1.What type of company are you?We are a manufacturer,we have stock of most of products and we support customization.2.What can you buy from us?Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switch, and Auxiliary Equipment, Human Machine Interface, Frequency Converter, Servo Motor, Module, Reducer and Other Industrial Automation Control Products.Please contact us if you do not find the product you want.3.How about the quality of the products?We can provide one year warranty for you and we have the certification of CE, CCC, UL, and RoHs etc.,we could send the certification test of our company to you4.How do you make our business long-term and good relationship?We have agents in Thailand, Japan, Singapore, Vietnam and South Korea..., and we do hope you become our agent in the future,welcome to discuss the deep details with us.      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
