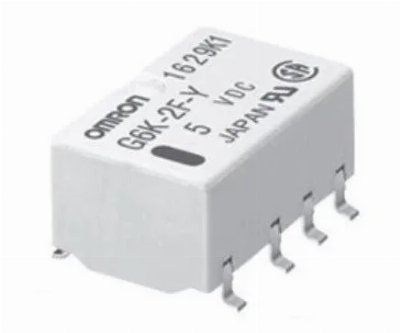

G6K-2F-Y-TR DC5 Signal Relay 5VDC 1A DPDT SMD

DescriptionG6K-2F-Y-TR : Low Signal Relays - PCB Gullwing NoLatch 3.2 DPDT 5VDC 100mWMfr. Part#: G6K-2F-Y-TRMfr.: OMRONDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR Product AttributeAttribute ValueSearch SimilarManufacturer:Omron Product Category:Low Signal Relays - PCB RoHS: Details Packaging:Tube Product:Low Profile Relays Type:Miniature Coil Voltage:5 VDC Relay Contact Form:2 Form C (DPDT-NO, NC) Contact Rating:300 mA, 1 A Contact Current Rating:1 A Maximum Switching Current:1 A Coil Current:21.1 mA Coil Type:Non-Latching Power Consumption:100 mW Contact Termination:Gull Wing Lead Series:G6K Brand:Omron Electronics Coil Resistance:237 Ohms Contact Form:DPDT (2 Form C) Contact Material:Silver (Ag) Mounting Style:SMD/SMT Product Type:PCB Relays Factory Pack Quantity:500 Subcategory:Relays Part # Aliases:G6K-2F-YDC5 G6K2FYDC5 G6K-2F-Y-DC5-BY-OMR G6K2FY5DC G6K2FYDC5NC G6K-2F-YDC5BYOMR G6K2FYDC5 Unit Weight:0.024692 oz   Surface Mounting Relay with the World's Smallest Mounting Area  • Subminiature model as small as 5.2 (H) × 6.5 (W) × 10 (L) mm is ideal for high-density mounting (G6K(U)-2F(-Y)).• Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y)).• Light weight of 0.7 g contributes to higher speed mounting.• Surface mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering.• Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500 V for 10 × 160 μs). • -Y models offer an impulse withstand voltage of 2,500 V for 2 × 10 μs (conforms to Telcordia specifications) by optimizing the distance between coil and contacts.• Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1).• Models available with a 2.54-mm terminal pitch.• Rated carry current: 2AApplication• Telecommunication equipment• Office automation machines• Test and measurement equipment• Building automation equipment• Security equipment• Industrial equipment• Amusement equipment• Home appliance    Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
