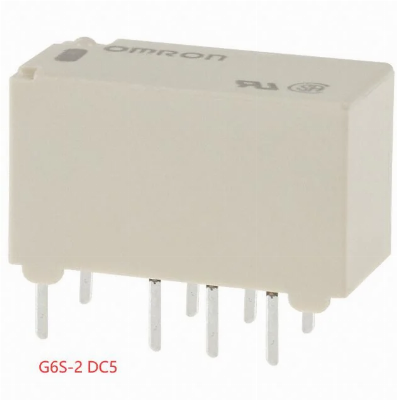

G6S-2 DC5 Signal Relay 5VDC 2A DPDT

DescriptionG6S-2 DC5 : Telecom Relay DPDT (2 Form C) Through Hole Mfr. Part#:  G6S-2 DC5Mfr.: OMRONDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR  Package Tube   Product Status Active   Mounting Type Through Hole   Coil Voltage 5VDC   Contact Form DPDT (2 Form C)   Contact Rating (Current) 2 A   Switching Voltage 250VAC, 220VDC - Max   Coil Current 28.1 mA   Coil Type Non Latching   Features -   Termination Style PC Pin   Seal Rating -   Coil Insulation -   Must Operate Voltage 3.75 VDC   Must Release Voltage 0.5 VDC   Operate Time 4 ms   Release Time 4 ms   Operating Temperature -40°C ~ 85°C   Contact Material Silver (Ag), Gold (Au)   Relay Type Telecom   Coil Resistance 178 Ohms   Base Product Number G6SCompact, Industry-Standard 2-pole relay, designed to switch 2A Signal Loads. • Long terminals for ideal for soldering and mounting reliability. (Surface mounting terminal models) • Space-saving inside-L terminal. (Surface mounting terminal models) • Unique terminal structure, designed to withstand IRS soldering processes. (Surface mounting terminal models) • High dielectric strength (2,000 VAC) and impulse withstand voltage between coil and contacts (2,500 V, 2 × 10 μs: Telcordia requirements). • Ultra-miniature at 9.4 mm (H) × 7.5 mm (W) × 15 mm (L). • Models available with BSI (EN62368-1) supplementary insulation certification. (-Y type)    Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
