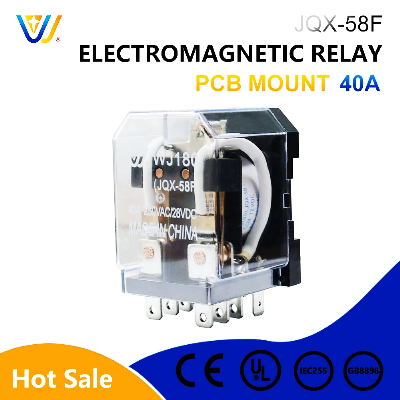

Electromagnetic Relay 8 Pins General Purpose Power Relays

Electromagnetic Relay 8 Pins General Purpose Power RelaysMain ParameterContact Arrangement2A,2B,2CContact MaterialSilver AlloyContact ResistanceMax.50mΩRated Load40A 250VAC40A 28VDCMax. Switching Voltage28VDC/250VACMax. Switching Current40AMax. Switching Power1120W/10000VAElectrical Life2×104Mechanical Life1×107Coil Power ConsumptionDC3.0WAC5.5VACoil VoltageDC6~220VDCAC6~380VACOther ParametersPick-up TimeMax.25msRelease TimeMax.25msDielectric StrengthCoil Contacts2000VAC ,(50/60Hz), 1 min.Open Contacts1500VAC ,(50/60Hz), 1 min.Insulation ResistanceMin. 1000MΩ (500 VDC)Environment Temperature-40ºC~+55ºCOperation Humidity45%~85% RHShock ResistanceFunctionalMin. 10GDestructiveMin. 100GAnti-vibrationFunctional1.5mm(DA)10~55 HzDestructive 1.5mm(DA)10~55 HzWeight≤180g        Wan Jia Star focuses on the research and development and manufacture of high-quality high-power electromagnetic relays. With contact anti-arc material and single-contact structure, it has an excellent performance in large-capacity load switching of power supply systems, while maintaining excellent performance in terms of contact volume and contact pressure. Our relay products include single group, double group, and triple group, 7A to 200A current range, NO, NC, and Transfer contacts, coil voltage 6~220VDC, 6~240VAC, and contact capacity 12VDC 24VDC 28VDC / 110VAC 220VAC 250VAC, PCB and Screw Fasten two mounting methods are available. In addition, Wan Jia Star power relays comply with various safety standards. IEC255, GB8898, UL, CE, TUV, RoHS, Reach, CQC standards, etc. It is used in electronic control equipment, household appliances, smart home, office automation, security series, commercial machinery, communication equipment, automobiles, machine tools, construction, transportation equipment, and instrumentation, and it can be used as a remote control intermediate conversion or amplification component./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
