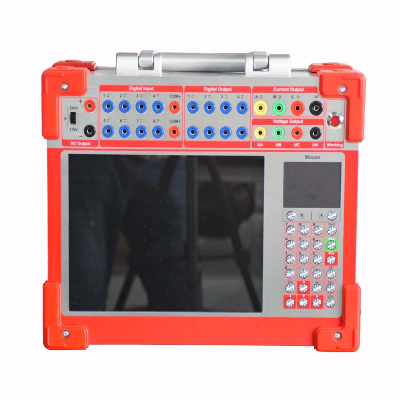

Windows 3 6 Phase Secondary Injection Relay Protection Test Kit

Discount BenefitsProduct DescriptionMain Features: 1.Windows XP operation interface, high-performance embedded industrial control computer, easy and fast operation. 2.It has software self-calibration function, which greatly improves the accuracy and stability. 3.The power amplifier adopts high-fidelity linear power amplifier, which not only ensures the accuracy of small current, but also ensures the stability of large current. 4.It adopts USB interface to communicate with PC directly, without any adapter cable, which is convenient to use. 5.The main control board adopts DSP+FPGA structure and 16-bit DAC output, which can generate 2000 high-density sine waves per week for the fundamental wave, which greatly improves the quality of the waveform and the accuracy of the tester.   Technical Parameter Single-phase current output (RMS) 0--30A/phase, accuracy: 0.2% ±5mA Six-phase parallel output (RMS) 0--180A/six-phase parallel output Phase current allowable working value for a long time (effective value) 10A Maximum output power per phase 320VA Six-phase parallel current maximum output power 1000VA Dimensions 390 x 280 x 170mm Weight 15Kg FeedbackCompany Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
