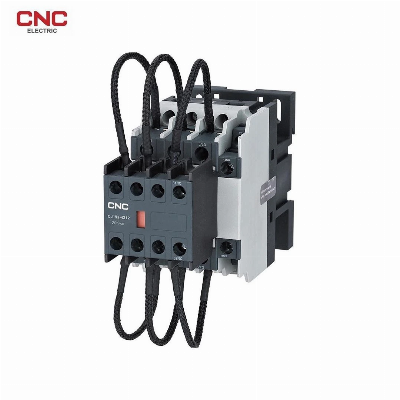

50Hz Ac Contactors Electrical DC Contactor with Good ServiceProduct DescriptionCJ19i contactor for capacitor switching (hereinafter called contactor) is suitable for the circuit of AC 50Hz/60Hz with rated rated voltage up to 690V. It is mainly used to add low voltage reactive power compensation equipment or cut off low voltage parallel capacitor. The contactor is equipped with a device to suppress the inrush current, which can effectively reduce the impact of the making inrush current on the capacitor and suppress the over-voltage when the capacitor is cut off.Standard: IEC/EN 60947-4-1.Contactor modelCJ19i-25 CJ19s-25CJ19i-32 CJ19s-32CJ19i-43 CJ19s-43CJ19i-63 CJ19s-63CJ19i-80 CJ19s-80CJ19i-95 CJ19s-95CJ19i-115 CJ19s-115Main circuit features Rated operational voltage(Ue)V380/400Rated isolation voltage(Ui)V690Rated current of controllable capacitor(In)AC-6b 400VA17293643587287Rated capacity of controllableAC-6b 230VkVar6910152222.535AC-6b 400VkVar12182030404560capacitor(Qn)Rated conventional heating current(Ith)A253243638095115Restrained surge capacityA≤35In≤55InMechanical durability104 times100Electrical durabilityAC-6b 400V 104 times1512Operating frequency cycles/hAC-6b 400V times/h300120 Coil features Controlled power voltage (Us)AC50HzV110, 220, 380Operation voltage rangeoperation voltageV85%~110%Us when install inclination angle is +22.5°; 70%~120%Us when install inclination angle is ±5°;release voltageV20%~75%Us when install inclination angle is +22.5°; 20%~65%Us when install inclination angle is ±5°;Auxiliary contact features Number of auxiliary contact12, 21Rated conventional heating current(Ith)A10The minimum load can be connected to6V×10mACompany Profile/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
