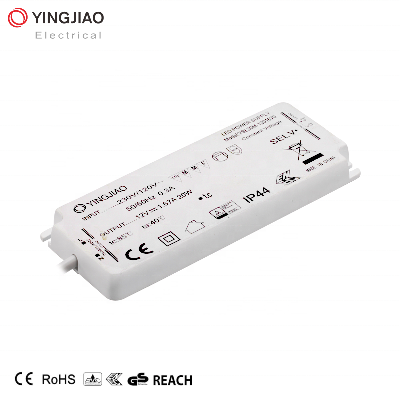

6W 12W 15W 20W Ultra Thin Waterproof IP44 Dimmable LED Driver

6W 12W 15W 20W Ultra Thin Power Supply 500mA 700mA Constant Current LED Driver Waterproof IP44 Dimmable LED DriverProduct DescriptionInput: 90-265VACOutput Current: 12V-48V DCRated Power: 20WApprovals: CE FCC GS REACH ROHSFeatures :1. YSL20M 20W series2. Universal Input:220/240VAC 50/60HZ3. Compliance to worldwide safety regulations for lighting4. Compliance to ERP Directive5. Isolation class II6. 100 % full load burn-in test7. Approved for installation directly on wood8. High Efficiency&low power consumption9. Short circuit,over current, over voltage protection10. IP44 protection ratingApplications:- LED Cabinet Light- LED Mirror Light- LED Wine Cabinet Light- LED Wardrobe Light- LED Bookcase Light Model:YSL20M-500YSL20M-700YSL20M-1050YSL20M-1400Power:20W MaxInput:AC220-240V/90-265VOutput Voltage:40VDC28VDC19VDC14VDCOutput Current:500mA700mA1050mA1400mAWithstand voltage:I/P-O/P 3000VProtections:Short Circuit /Over Current /Over Voltage/Over temperature protectionSafety Specification:IEC61347-1,IEC61347-2-13 ,EMI According to EN55015,EMS According to EN61000-3-2; EN61000-3-3; EN61547, EMF According to EN62493-2010,ERP According to EN1194-2012Dimension:90*40*24/130*42*17mmPacking:1PC/PE BAG+INNER BOX, 50PCS/CTN, CAN BE CUSTOM PRODUCT SHOW   MORE PRODUCTS   ABOUT YINGJIAO  Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements. FACTORY&EXHIBITION  CERTIFICATE  SOLUTION   TRANSPORT  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
