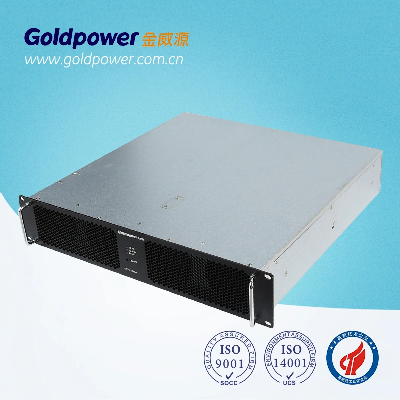

30kw 750V AC DC Charging Module for Electric Vehicle Charger

First 30kW single module design in the industry, ultra high power density, reducing the number of modules in parallel,overall reliability improved.Features:Soft-switching technology, high efficiency up to 95%, full digital DSP control, total harmonic current less than 5%.Leading APFC tech (active power factor correction), power factor > 0.995Automatic intelligent current sharing without monitoring, supports intelligent hibernation.Ultra wide output range, works with the bus, car and other vehicles, featuring BMS auxiliary low-voltage power output;Supports hot plugging without damage, a module can be replaced within 1min.Complete isolation and failure protection between input and output terminal, output end equipped with backflow-prevention device.Compact size, customized design, compatible with multiple protocols, applicable for integrated / split or other types of charger.Applications:      1.  EV Charging equipment manufacturers, Charging service providers.      2.  Third party charging pile / station operation and maintenance services providersSpecifications:Parameter  UnitModelGPR50060AGPR75040A Power3030KWInput voltage260-530260-530VacInput frequency45-6545-65HzOutput voltage200-500200-750VdcMax. output current6040APower factor≥0.995≥0.995 Voltage regulation≤±0.5≤±0.5%Current regulation≤±0.5≤±0.5%THD≤3≤3%Full load efficiency≥96.4≥96.4%Current sharing≤±0.5≤±0.5%MTBF>400,000>400,000hoursRipple(peak to peak)≤±0.5≤±0.5%Start-up timeSoft-staring 8sSoft-staring 8sSOperating temp-40~+65-40~+65ºCAcoustic Noise≤55≤55dBCommunication PortCANCAN/RS485 Protection classIP32IP32 Lighting protection55KADimensions460x87x450460x87x450mmWeight1818KGProtectionInput over/ under voltage, phase-lacking, output over voltage, short circuit , over temperature, failure isolation  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
