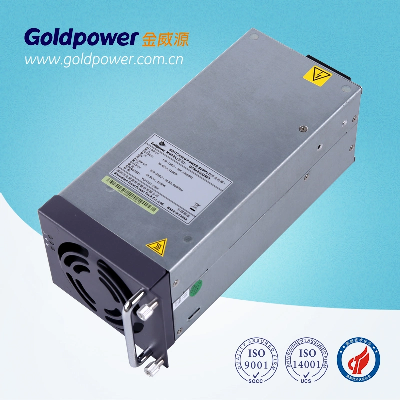

48V Electric Vehicle Charging Module with Ce, UL, Tlc

2400W 48V 50A Electric Vehicle Charging Module is high efficiency DC charging rectifiermodule with CE,UL,CCC,TUV,TLCFeatures:       1.   Ultra high power density up to 22 W/in3, compact structure.       2.   Soft-switching technology, high efficiency more than 93%.       3.   Leading APFC tech (active power factor correction), power factor > 0.99       4.   Multiple protection and safety regulation (CE/UL/TLC/3C)       5.   Supports hot plugging without damage.       6.   Remote control switching,.       7.   With RS485 communication interface, customized output interface available.       8.   Paralleled work available via current sharing bus       9.   THD≤5%Application:   1.   EV charger   2.   48V distributed power system   3.   Ethernet   4.   Exchange   5.   LAN,MAN   6.   Sever   7.   Indoor wireless   8.   Telecom equipmentSpecification:ModelGPR4850DR03-1Power2900WEfficiency93%Input voltage90~290VacInput frequency45~65HzInput current20APower Factor0.99Output voltage50.1~50.7VdcOutput current48AStabilized voltage precision±1%Ripple+Noise(Vp-p)200mVOperating temperature-25~55ºCStorage temperature-40~70ºCHumidity5~95%CoolingForced coolingAcoustic noise≤55dBMTBF≤250,000 hoursTurn-on time3~8SCurrent-sharing±5%Temperature coefficient±0.02%/ºCDimensions(LxWxH) 242.5x102.7x88.1(mm)/9.55x4.04x3.47(in.)Weight
