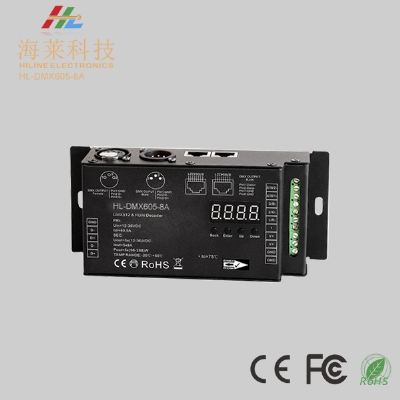

Industrial Level 8A in 5 Channels DMX512 & Rdm Decoder DC12-24V 30kHz

industrial level 8A in 5 channels DMX512 & RDM decoder DC12-24V 30KHz features:1. Industrial level DMX512 & RDM decoder; 2. Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols, compatible with DMX512 master consoles from other international incorporations; 3. Total 8A in 5 PWM output channels, common anode, DC12-24V. DMX channel quantity from 1CH to 5CH settable; 4. Output terminal includes: XLR 5pin, XLR 3pin, RJ45, Screw DMX; 5. RDM bi-directional communication function enables DMX512 master console to detect decoder, display decoder information and set DMX address; 6. Visible numeric digital display operation interface with a variety of features selection; 7. PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit; 8. 10 levels of PWM output frequency optional from 500Hz-30kHz, default setting is 1kHz; 9.Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1; 10. Gamma ray curves value adjustable from 0.1-9.9, logarithmic dimming and linear dimming optional;   industrial level 8A in 5 channels DMX512 & RDM decoder DC12-24V 30KHz specs:  Part No.Input VoltageOutput CurrentOutput PowerOutput TypeDimension (mm)RemarksHL-DMX605-8A-512-24VDC5CH, 8A/CH5*(96-288W)Constant Voltage73*164*38XLR 5pinHL-DMX605-8A-312-24VDC5CH, 8A/CH5*(96-288W)Constant Voltage73*164*38XLR 3pin industrial level 8A in 5 channels DMX512 & RDM decoder DC12-24V 30KHz dimension:  industrial level 8A in 5 channels DMX512 & RDM decoder DC12-24V 30KHz wiring:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
