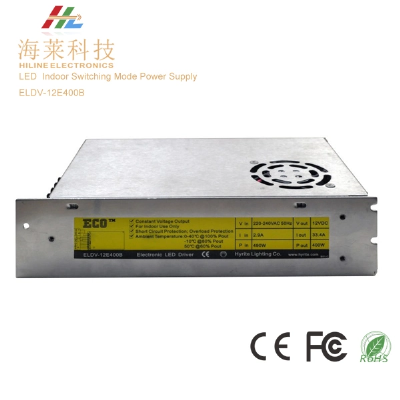

LED Indoor Switching Mode Power Supply 400W Eldv-12e400b

ELDV-12E400B Introduction:this Indoor use only unit has a metal case .The top surface and one side wall are perforated giving excellent heat dissipation characteristics via convection cooling. The open access electrical connection block enhances ease of installation. Compact size and light weight, enabling use in a variety of indoor installation locations.ELDV-12E400B Features: Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc... Constant voltage output Mesh case (or electric fan) for ventilation100% burn-in testELDV-12E400B Technical parameters: Model no.ELDV-12E400BModel seriesELDVInput voltage170-250VAC 50HzPower400W maxOutput typeConstant voltageDimmingNot dimmablePower FactorLow PF~0.6Efficiency78%AC inrush current(max.)Cold start, 40A@230VACOutput voltage12VDC ± 5%Output current33.0A maxOverload protection105-150% hiccup mode, auto-recoveryOver voltage protection120% rated output voltageWithstand voltageI/P~O/P:3kVAC, 1 minuteOperating temperature-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºCInstallationIndoorIP ratingIP20CoolingFree air convectionCertificates/standardsCEConnection input/outputTerminal [*for LPS-, 'Input:18AWG*3 (30cm) / Output:18AWG*2' (30cm) ]Dimensions(L*W*H)260*110*70 mmWeight(kg)0.3500Packing information10pcs/carton, G.W.8kgELDV-12E400B wiring instruction: Derating curve:   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
