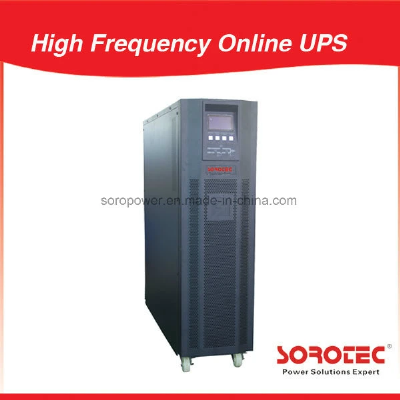

20kVA 1800W High Frequency Online UPS Power Supply with Double Conversion

20KVA 1800W  High Frequency Online UPS Power Supply with Double ConversionReduce the investment cost saving valuable space:HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,Itdelivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.ModelHP9335C PLUSHP9335C (Standard)TypeHigh frequency online UPSHigh frequency online UPSCapacity10-30kva10-20kvaOutput Power Factor0.90.8Max Efficiency(AC Mode)>90%>89%DC Voltage12V/9AH12V/7AHKey Features:1.True double-conversion2.DSP technology guarantees high performance3.Output power factor 0.94.Wide input voltage range (110-300 VAC)5.Active power factor correction in all phases6.50Hz/60Hz frequency converter mode7.ECO mode operation for energy saving8.Accepts dual-mains inputs9.Emergency power off function (EPO)10.Generator compatible11.SNMP+USB+RS-232 multiple communications12.3-stage extendable charging design for optimized battery performance13.Adjustable battery numbers14.Maintenance bypass available15.Optional N+X parallel redundancy16.Optional isolation transformer offers full isolation and complete common mode noise rejectionTechnical Specifications of Online UPS HP9335C Plus 10-30KVAMODEL                                                        HP9335C Plus 10-30KVA10K10K-XL15K15K-XL20K20K-XL30K30K-XLCAPACITY10KVA / 9KW15KVA / 13.5KW20KVA / 18KW30KVA / 27KWPHASE                                                              3 Phase with NeutralINPUTVoltage RangeLow Line Loss110 VAC(Ph-N) ± 3 % at 50% Load;176 VAC(Ph-N) ± 3 % at 100% LoadLow Line ComebackLow Line Loss Voltage + 10VHigh Line Loss300 VAC(Ph-N) ± 3 %High Line ComebackHigh Line Loss Voltage - 10VPhaseThree phase with groundPower Factor≥ 0.99 at 100% LoadOUTPUTOutput voltage208/220/230/240VAC(Ph-N)AC Voltage Regulation± 1%Frequency Range (Synchronized Range)46Hz ~ 54 Hz @ 50Hz system;56Hz ~ 64 Hz @ 60Hz systemFrequency Range (Batt.Mode)50 Hz ± 0.1 Hz or 60Hz ± 0.1 HzOverloadAC mode100%~110%:10min;110%~130%:1min;>130%:1secBattery mode100%~110%:30sec;110%~130%:10sec;>130%:1secCurrent Crest Ratio3:1 maxHarmonic Distortion 90%Battery Mode> 86%> 88%> 87%> 89%BATTERYStandard ModelType 12 V / 9 Ah12 V / 9 Ah12 V / 9 Ah12 V / 9 AhNumbers20(18-20 adjustable)2 x 20(18-20 adjustable)2 x 20(18-20 adjustable)3 x 20(18-20 adjustable)Recharge Time9 hours recover to 90% capacityCharging Current1.0 A ± 10% (max.)2.0 A ± 10% (max.)2.0 A ± 10% (max.)4.0 A ± 10% (max.)Charging Voltage273 VDC ± 1%Long-run ModelTypeDepending on applicationsNumbers18-20Charging Current4.0 A ± 10% (max.)4.0 A ± 10% (max.)4.0 A ± 10% (max.)12.0 A ± 10% (max.)Charging Voltage273 VDC ± 1%PHYSICALStandard ModelDimension, DxWxH(mm)832 X250X894832 X250X1275Long-run ModelDimension, DxWxH(mm)609 X250X768832 X250X828ENVIRONMENTOperation Temperature0 ~ 40°C (the battery life will down when > 25°C)Operation Humidity
