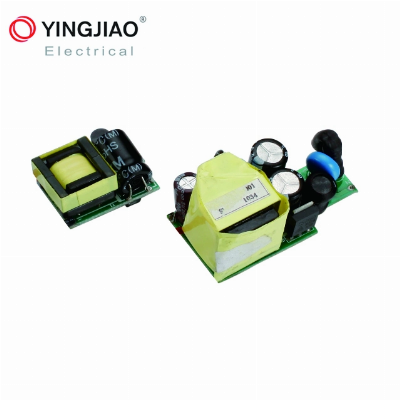

Factory Directly 7W LED Driver Power Supply Module

Factory Directly 7W Led Driver Power Supply ModuleProduct DescriptionModel:YSLO7Power:7W max.Input:100-240VAC 50/60HzOutput Voltage:5-36VOutput Current:0.1-1.2AInput current:0.5A max.Inrush Current:20 Amps max. at 230VAC/50Hz,full loadLeakage Current:0.25mA Max. at 264VAC inputProtections:Short Circuit /Over Current /Over VoltageShort Circuit Protection (SCP):Protection to Zero VoltageOver Voltage Protection (OVP):≤Vout*150%Over Current Protection (OCP):110%-180%Working TEMP.:-20°C-50°CWorking Humidity:5%-90% RH non-condensingStorage TEMP.,Humidity and altitude:-40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. Input Plug: EU,US,UK,AU etc. type according to customer's choiceCertificates and approvals:UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACHEMI EMISSION:Radiation Test&Conduction Test: EN 55022/FCC Part 15Harmonic Test : EN 61000-3-2Flicker Test : EN 61000-3-3EMS IMMUNITY:ESD  Test:EN 61000-4-2RS    Test:EN 61000-4-3EFT   Test:EN 61000-4-4Surge Test:EN 61000-4-5CS     Test:EN 61000-4-6DIP    Test:EN 61000-4-11MTBF:100000 hours minimum at full load at 25 ambientLife:3-5 years alternativeDimension:25*17*10mmWeight:30gPacking:100PCS/CTN,45*28.5*31cm Details:Model:YSLO7-0501400YSLO7-1200570YSLO7-1500460YSLO7-2000350YSLO7-2500280YSLO7-3600190DC Voltage:5V12V15V20V25V36VRated Current:1.2A0.57A0.46A0.35A0.28A0.19ACurrent Range:0-1.2A0-0.57A0-0.46A0-0.35A0-0.28A0-0.19ARated Power:6W6.8W6.9W7W7W6.8WRipple & Noise(max.):90mVp-p120mVp-p200mVp-p200mVp-p250mVp-p360mVp-pVoltage Tolerance:±5%±5%±5%±5%±5%±5%Line Regulation:±3%±3%±3%±3%±3%±3%Load Regulation:±5%±5%±5%±5%±5%±5%Setup,Rise,Hold up time:3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. MORE PRODUCTS  ABOUT YINGJIAO  Yingjiao Electrical Co,Ltd. was established in 1995 and is dedicated to the designand development of all types of low voltage power adapters, LED drivers, utilizingscaled manufacturing and global sales to fully serve the world's electronic andelectric industries. The core products include switching & linear power adapters.battery chargers, transformers, LED drivers and completely customizable powersolutions, designed for use in telecommunications, IT equipment, consumerelectronic devices, security system, automation, medical equipments, smarthome, LED lights and much more.Yingjiao owns independent high-frequency transformer and SMT workshops,along with 22 production lines for manufacturing & assembling, sell over 660million power supply products in the past years. Committed to total qualitymanagement through continuing improvement processes, including derating &reliability analytics testing, MTBF procedures are an integral part of our researchand development, with quality assurance management in support of ISO9001quality systems ensure that Yingjiao consistently offers the highest qualityproducts for our customers.Yingjiao products comply with RoHS, PAHS, REACH and WEEE standards, AchieveCoC V5 and DoE Vl of efficiency level, obtained and maintained FCCTUV-GS, CBCSA,PSE, RCM, KC,EAC,NOM,IRAM,CE,EMC and CCC safetycertificates.In addition to our full line of products, Yingjiao offers complete 0EM / ODMproduct development to meet your individual requirements. FACTORY&EXHIBITION  CERTIFICATE  SOLUTION   TRANSPORT  CONTACT US      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
