Novastar A10s Plus High-End Large LED Panel Receiving Card

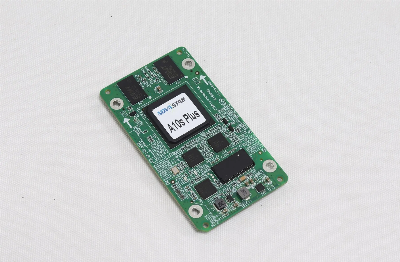

Novastar A10S Plus High-end Large LED Panel Receiving Card  Novastar A10S Plus High-end Large LED Panel Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 groups of serial data.  Novastar A10S Plus High-end Large LED Panel Receiving Card Features:Advanced Hardware Design:The small hardware footprint saves cabinet space and is suitable to a variety of applications.Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability. Integrated network transformer features simple design and improved electromagnetic compatibility.  Useful Software Design:Supports up to 1/64 Scan.Supports the following functions when working with NovaLCT (V5.2.0 and later)Supports random order scanning of module. Lights the modules with data row extracting and channel extracting.Supports precise grayscale correction.Supports individual Gamma adjustment for RGB. Supports bit error detection. Supports HDR function. Supports low latency function. Supports 18Bit+ to display image with high brightness or low grayscale. Supports ClearView high image quality display.Supports LVDS transmission (supported by dedicated firmware program).Supports smart module (supported by dedicated firmware program).Supports quick seam correction.Supports 3D functionSupports auto module calibration.Supports Mapping function. Supports setting of pre-stored image on receiving card.Supports module Flash management.Supports voltage and temperature monitoring of card without use of peripherals.Supports cabinet LCD.Supports image rotation in 90° increments. Supports display rotation at any angle.  Novastar A10S Plus High-end Large LED Panel Receiving Card Parameter:Maximum Loading Capacity512×512 pixels Input voltageDC 3.3 V- 5.5 V Rated current0.5 AElectrical ParametersRated power consumption2.5 WOperating EnvironmentTemperature-20°C-70°CHumidity10% RH-90% RH, non-condensingStorage EnvironmentTemperature-25°C-125°CHumidity10% RH-90% RH, non-condensingPacking InformationPacking specificationsAn antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 40 receiving cards.Packing box dimensions378.0 mm × 190.0 mm × 120.0 mmDimensions80.0 mm × 45.0 mm ×7.3 mmNet Weight22.3 gCertificationsRoHS, EMC Class B More Pictures of Novastar A10S Plus High-end Large LED Panel Receiving Card:  Company information:JINGCAN led factory's main products areconsist of rental led display, advertising led screen,football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities.Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc. JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines  Qualification Honor: Product Project: Packing and Shipping:Packing: Anti-shaking wooden cabinet/Air flight case/strong cartonShipping port: Shenzhen, ChinaShipping way:Air;Express;Ocean;Land TransportationDelivery time: 7-15 working days after confirm receipt  payment in advance.Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.         FAQ:Q1. Can I have a sample order for led Screen?A: Yes, we welcome sample order to test and check quality. Both for LED moduel ora whole screen.Q2. What about the lead time?A:About 7~10 working days.Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1 square meter or a moudle checking is availableQ4. How do you ship the goods and how long does it take to arrive?A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.It usually take 20 30 day on sea. a few days for customer clearanceQ5. How to proceed an order for led Screen?A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the design document  and places deposit for formal order.Fourthly We arrange the production.Q6: Do you offer guarantee for the products?A: Yes, we offer 2 years warranty to our products.Q7: How to deal with the faulty?A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Our service:1. Your inquiry about our products or the
