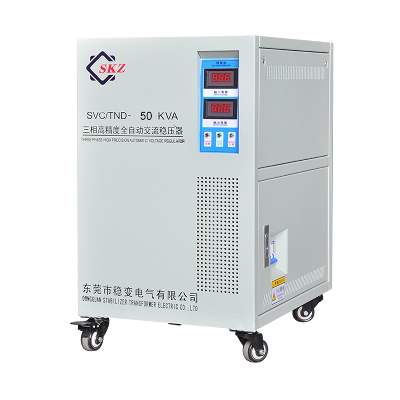

Automatic Voltage Regulator AVR Stabilizer

Automatic Voltage Regulator Avr StabilizerAutomatic Voltage Regulator Avr Stabilizer is designed with quick response speed and wide range of input voltage, it can keep the voltage stable and help electrical equipment run normally and protect the equipment from damage when there is voltage fluctuation. Besides, this voltage stabilizer has overload, overvoltage, overcurrent and phase failure protection. Specifications:10KVA-1000KVA Automatic AC Power StabilizerPower Rating10KVA-100KVA (customized)Control MethodServo Motor(Microprocessor CPU)InputRated VoltageThree Phase(Customization According to Your Local Voltage)Voltage Range±20%~±45%(Can be Customized)Frequency50Hz/60 HzOutputRated VoltageThree PhaseStabilizing Accuracy ±1%~ ±5%(Can be Customized)Power FactorPF≥0.8Efficiency≥98%Response time≤0.5SDelay time(When it is turned on)≤5s(Optional)Waveform Distortion≤1%System ProtectionOver VoltageThe output voltage is higher than 10%(adjustable),cut off the input in 3~5sUnder VoltageThe output voltage is lower than 15%(adjustable),cut off the input in 3~5sOverloadIf over current,cut off the input in 3~5sPhase DislocationWhen there is phase dislocation, it will ring the alarm and cut off the input powerPhase LossWhen there is phase loss, it will ring the alarm and cut off the input power.Short CircuitWhen the load device is short circuited, cut off the input powerBypassWhen the voltage stabilizer is repaired, the power can transfer to bypass manuallyLCD ScreenInput VoltageReal-time display of the input voltageOutput VoltageReal-time display of output voltageOutput CurrentReal-time display of working currentWorking StatusBypass, Fuse Blown, Over-voltage, Under-voltage,Over-load etc.OthersCooling SystemAirInsulation Resistance≥2MΩVoltage-enduranceThe whole machine has no breakdown and no arcing phenomena  for 2000VAC/ min.Noise
