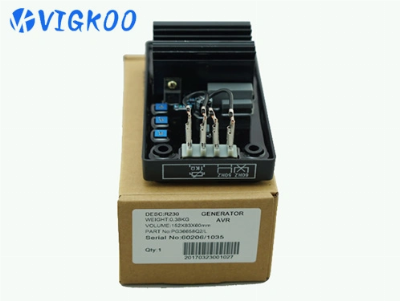

AVR R230 Volt. Regulator Replacem for Leroy Somer

The alternator with Shunt excitation is self- excited with a Leroy Somer R230 voltage regulator.The regulator monitors the exciter excitation current as a function of the alternator output voltage. Very simple in design, the alternator with shunt excitation has no sustaining short-circuit capacity. Leroy Somer R230 AVR Characteristics Mains input: 0~140VAC 50/60HZBiggest excitation output: DC, 90V/6A/10SExamination voltage input: 115VACThe lowest residual magnetism gets up urges the voltage:≥5V/25HZVoltage regulation rate:≤±1%Outside meets when the voltage trimming 1K/2W potentiometer ±10%Operating temperature:-40ºC~70ºCAllows to short-circuit the charging current capacity 200%Installs the size:152mm X 83mm X 60mm  VIGKOO is specialized in diesel engine,generator set, and spare parts.We supply all kinds of accessories for diesel engine,like cylinder head,cylinder head cover,cylinder block,alternator,turbocharger,piston,piston ring,piston pin,liner,crankshaft,cam shaft,main bearing,connecting rod,connecting rod bearing,water pump,oil pump,injector,fuel injection pump,starter motor,fan,belt,gasket,oil pan,flywheel,intake valve,exhaust valve and so on./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
