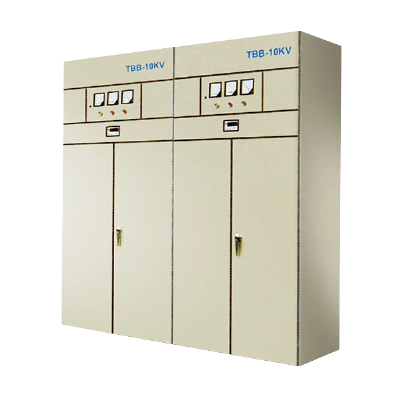

TBB-10 Hv Full-Automatic Used for Switchgear Cpacitance Compensator

TBB-10 High-Voltage Full-Automatic Capacitance Compensator   Product overviewHigh-voltage full-automatic capacitance compensator is directly connected in parallel with substation switchgear, high-voltage asynchronous motor and other inductive loads to improve the power factor at load end, to improve voltage quality, to reduce line losses, to adjust the network voltage, and to play a role of saving energy and random automatic compensation.Executive standards: JB7111-93 High-voltage shunt capacitor device, GB50227-95 Code for design of installation of shunt capacitors. Structure The device takes parallel capacitor as the main body; it is also equipped with current transformer, fuse, lightning arrester, series reactors and so on. The body of switchgear uses high-quality cold-rolled steel with ventilation shutters panels. The entire device has small volume, compact structure and reasonable layout. Ambient conditions 1.Altitude of the installation site should not exceed 1000m; 2.Ambient temperature of the installation site should be within -25ºC~+40ºC (indoor), -40ºC~40ºC (outdoor); 3.Installation site should be free of violent mechanical vibration, no poisonous or harmful gas or steam, far away from conductive or explosive dust. Performances 1.Long-time running at power frequency 1.1 times of rated voltage is permissible; 2.Continuous running with steady over-current whose virtual value is 1.3 times of rated current caused by overvoltage and        ultraharmonics is permissible; 3.Difference between the actual capacitance and rated capacitance should not beyond (0~+10)% of rated value, ratio of maximum    capacitance and minimum capacitance between any two terminals of compensator should not exceed 1.06; 4.Temperature of connection part among buses and each connection part of main circuit should not exceed 50ºC; 5.Surge current produced at the instant of putting into operation of capacitor bank can be limited below 20 times of rated current of capacitor bank.  Shipping & PackingShipping Details: Standard Export cartonShipping Details: 7-30 day after receing the depositCompany InformationHONLE Electric Co.Ltd. is the manufacturer which specializes in developing, producing and marketingindustrial electrical products. It has three factories, the first one produces power supply, the secondone produces power transformer, and the third one produces complete set of equipment. As a memberof China Power Supply Society, since HONLE is founded, the company has been insisting on the theoreticguideline of "science &technology is the first productive force" and holding up brand strategy as theguideline, relying on forwarding power supply technology, perfecting craft and unwearied pursuing to quality.We can show top quality and set up positive image of enterprisein domestic and foreign market. Our Service 1.Your inquiry related to our product & price will be replied within 48 hours2.Well-trained & experienced staff are to answer all your inquiries in English3.Working time: 8:00am ~17:30pm, Monday to Saturday. (UTC+8)4.Customized solution & perfect after-sale service5. Payment: we can accept T/T, L/C, Western Union.6. For large order, engineer can be sent to your country for on-site mainternace instructions. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
