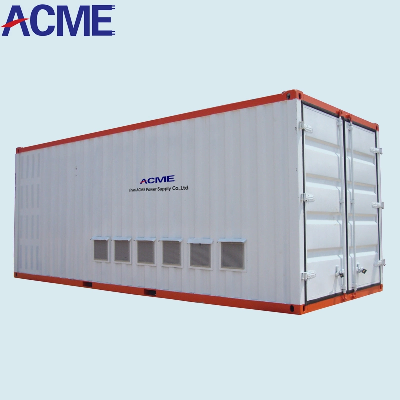

300kVA 450kVA 500kVA 600kVA 800kVA Shore Power Supply

Product introductionACMES series high-power shore power supplyProduct introduction: ACMES series of high-power variable frequency power supply equipment is specifically designed and manufactured for the harsh use of high temperature, high humidity and high corrosive load impact spree such as ship and shore docks. All PCB circuit boards are coated and cured, sine filters and output transformers are treated with overall vacuum impregnated insulation and spray-high-temperature protective paint, with a high insulation and protection level, and are fully compliant with the marine product certification standards of CCS. Widely used in ships, ship building and repair plants, ocean-going drilling platforms, shore terminals and other needs from 50HZ industrial electricity to 60HZ high-quality fixed-frequency regulated power supply.Technical features:The use of DDS digital control variable frequency power supply technology, combined with the needs of the marine industry developed products.Rated input voltage: The input power supply is a three-phase 380V/50HZ industrial power supply with voltage fluctuations ranging from 323V to 528V.Rated output voltage: The output voltage can be provided in a variety of single/three-phase voltage levels according to the user's needs.  Rated output frequency: 60HZ/50HZ (can be converted at any time) or 400HZ.  Output frequency accuracy and stability: output frequency error of 0.01Hz;Four-window five-function digital meter: measurement display Hz, V, A, W, PF.Output waveform distortion: THD is 1.2 to 2.8%, and the stability and reliability are high. Output voltage regulator: static
