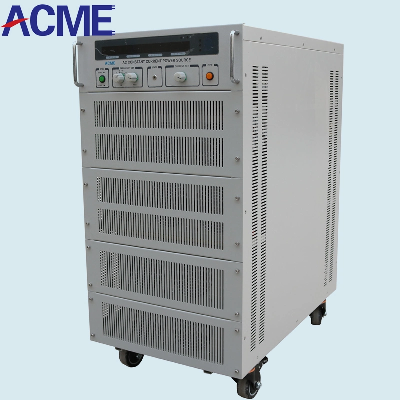

Product introductionProduct introductionAC constant current power source is a kind of wide spectrum, high-precision CC, low harmonic distortion CC power source. This constant current source is an AC supply that keeps the output current constant when the power supply of the outside power grid fluctuates or the resistance characteristics of the electricity conformtos changes. This power supply is mainly used in products and sites where specific current thermal effect applications and testing are carried out. Such as circuit breakers, fuses, thermal relays, magnetic starters, coils, etc. need to be tested.Technical featuresAC constant current source is specially designed and manufactured for low-voltage electrical users, its output current is constant, the output waveform is pure sine wave, can be used as a detection overcurrent experimental instrument.This AC constant current source can be with resistance, inductive and capacitive load, to meet the requirements of low-voltage electrical appliances test.Outstanding advantages, high CC accuracy, according to the user's environment has 1%, 0.8%, 0.5%, 0.3% level. The output current is guaranteed to be constant.Can carry out different current levels of automated testing (project: voltage, current, frequency, lift time, can be cycled test operation)Frequency adjustable range: 40-500HZ (optional), fixed output: 50HZ, 60HZ (more range fixed output frequency can be designed according to user needs)For the user to set the amount of analog (signal) controlTechnical parametersModelACME__-__AOutput power__VACircuit modeSPWM Pulse Width ModulationACinputPhaseSingle/three+PEVoltage220/380V±10%Frequency47-63 HzACoutputPhaseSingleNO-LOAD Voltage__V Max Current__ACurrent Range0~__ALine Regulation0.1%Load Regulation< 1%Frequency50HZ,60HZ,47-63HZFrequency StabilityConstant Frequency:≤±0.01%,Frequency Modulation:≤±0.5%Power Factor0.8Total Harmonic Distortion(THD)Linear Loads≤3% Non-linear Loads≤5%Crest Factor3:1Efficiency≥85%RMSFrequency Resolution 0.1HzVoltage Resolution 0.1VCurrent Resolution 0.1APower Resolution 0.1WPower Factor0.01ProtectionOutput Overvoltage,Output Overcurrent, Over Temperature , EMI/EMCInsulation Reactance500Vdc 20MΩ aboveDielectric Insulation1800Vac/5mA/1minNoise< 60DB at 1 meter Cooling MethodFan Cooling EnvironmentOperating Temperature0ºC-40ºCHumidity0 - 90% Non-condensingDimensionsW×H×D(mm) /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
