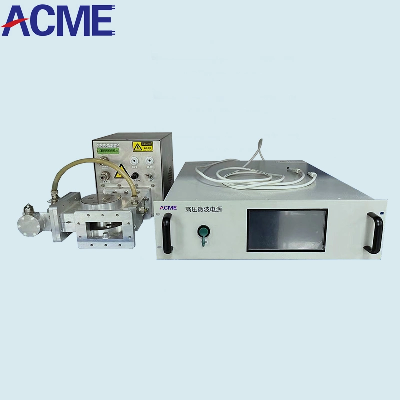

Solid State Microwave Generator 6kw for Mpcvd

Product introductionThis product adopts continuous wave magnetron (Panasonic or Richardson) to realize microwave power of 6kW (microwave frequency 2450±15 MHz) microwave generator. The system is cooled by water, mainly composed of high frequency power supply, MW-Head and MW-System. High frequency power supply includes anode high voltage power supply, filament power supply, magnetic power supply and control system, etc. The MW-Head contains magnetron and excitation cavity, etc.  The microwave system includes Circulator, Coupler, Three-stub tuner, etc.The microwave generator has two control modes: touchscreen interface and RS485 communication, can adapt different usage needs. The expansion port is reserved, the control function can be added according to actual usage needs.  NumItemTechnical requirementRemark1Input voltage380V±10%,50Hz±2HzThree phase and fourwire2Microwave outputpower≥6kWContinuous wave3Microwave outputfrequency2450MHz±15MHz 4Microwave conversionefficiency≥65% 5MW-Power adjust10%~100% continuous adjustment 6Flange jointBJ22/BJ26 7Control modeLocal control/communication 8ProtectionFilament over current and under current; Anode overpressure and overcurrent; Magnetic field overcurrent;Ignition; Magnetron over-temperature;Water protection;reflection protection 9VolumeHF-Power supply: 482mm*177mm*556mmM-W Head:200mm*250mm*300mmW*H*D10Usage environmentWork temperature:-10~40ºC Storage temperature:-20~50ºC Humidity:95%no condensationAltitude:
